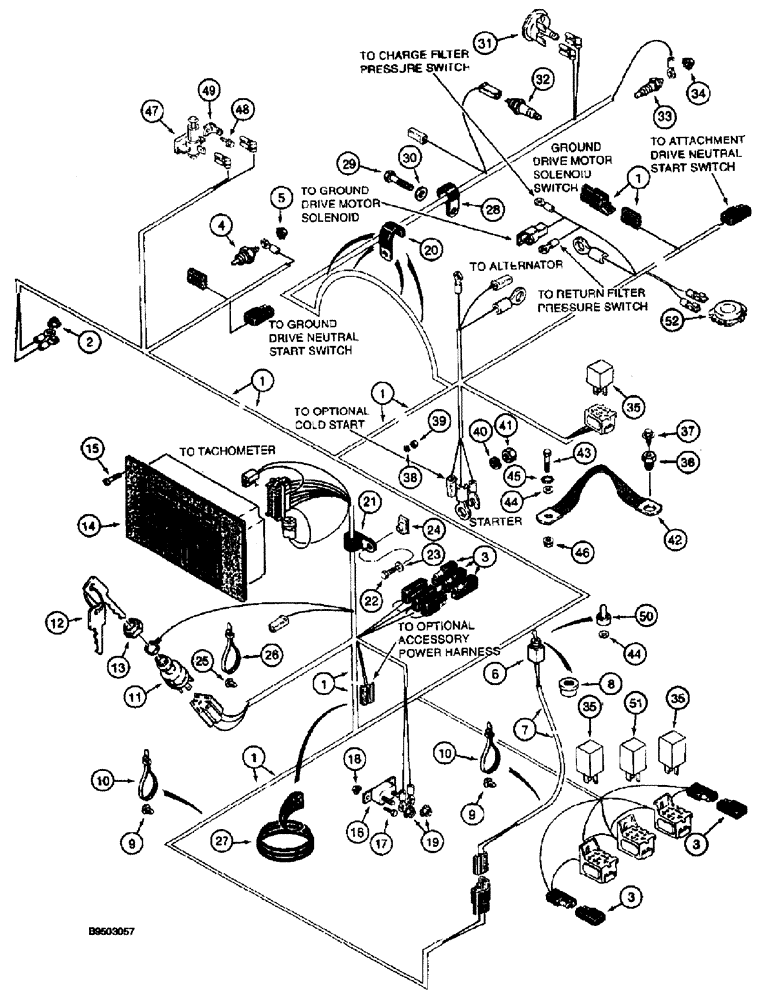

Запчасти Case 660 (4-17A) - MAIN WIRING HARNESS AND CONNECTIONS, WITH SEAT INTERLOCK SYSTEM, USED ON MODELS WITH 4-390 ENGINE (04) - ELECTRICAL SYSTEMS

1

139691A1

HARNESS

- wiring, main

1шт.

2

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

3

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness, alternator protecting, neutral and seat

5шт.

4

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - hydraulic oil temperature

1шт.

5

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

H675066

SWITCH

ASSEMBLY - toggle, speed select, see Fig. 6-2 for ground drive control lever, Includes: Ref. 6 - 8

1шт.

6

H438667

IGNITION SWITCH

SWITCH - toggle, speed select

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE - speed select, Serial Range: switch-harness

1шт.

8

H439229

BUSHING

- switch mounting

1шт.

9

H438377

BUTTON

MOUNT - retaining strap

3шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH - ignition, without keys

1шт.

12

A77313

SET OF 2 KEYS

KEY - set of two, ignition; metal without padding

1шт.

13

A77314

NUT

- hex, special, ignition switch mounting

1шт.

14

141759A1

CLUSTER

ASSEMBLY - instrument, 12 volt, parts list Fig. 4 - 19A

1шт.

15

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

16

L104329

BREAKER

- circuit, 15 amp

1шт.

17

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

- machine, pan Phillips, No. 8 NC x 1/2 inch

2шт.

18

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No 10 NF

2шт.

20

A37179

CLIP

CLAMP - P-type, harness, uses existing hardware

4шт.

21

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

24

H346650

NUT

- U-type, 5/16 inch NC

1шт.

25

H438377

BUTTON

MOUNT - retaining strap

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

D49094

LINING

TRIM - edge, 268 mm (10-1/2 inch) long, cut from F42827 bulk trim, see below

1шт.

28

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Closed 1/2", Insul, 1/2" Bolt

1шт.

29

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 16 mm

1шт.

30

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

1шт.

31

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long

1шт.

32

A162297

SWITCH

SENDER - engine oil pressure

1шт.

33

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine water temperature

1шт.

34

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

35

D128310

RELAY

- 30 ampere, starter, neutral and switch

3шт.

36

H438375

BOLT

- hex, 12 - 1.75 x 16 mm, special

1шт.

37

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

1шт.

38

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

39

825-1405

NUT,M5, Cl 8

1шт.

40

892-11010

LOCK WASHER,M10

1шт.

41

825-1410

NUT,M10, Cl 8

1шт.

42

D127018

STRAP

- ground

1шт.

43

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

44

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

45

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

46

231-5146

FLANGE NUT,3/8"-16

1шт.

47

N8343

SWITCH

- parking brake indicator, see Fig. 7-2 for parking brake lever assembly and mounting

1шт.

48

281-34414

SELF-TAP SCREW,Hex Wash Hd, #8 x 7/8"

SCREW - self-tapping, hex washer head, No. 8 NC x 7/8 inch

1шт.

49

H439264

PLATE, LOCKING

TAB - terminal

1шт.

50

116400A1

BOOT

- toggle switch

1шт.

51

1994819C1

RELAY

- time delay, prior to P.I.N. JAF0164947

1шт.

51

224787A1

RELAY

- timer, P.I.N. JAF0164947 and after

1шт.

52

175875A1

SWITCH

- seat interlock

1шт.
