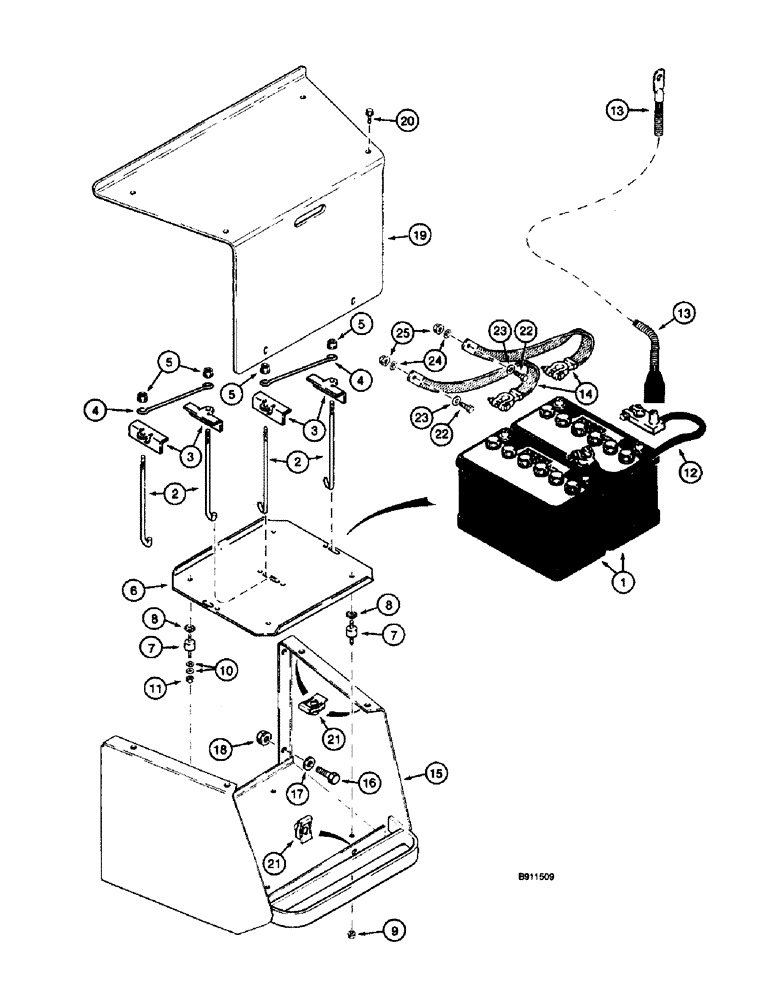

Запчасти Case 660 (4-12) - BATTERY, MOUNTING, AND CABLES, DUAL BATTERY COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, dry type, service replacement

2шт.

See Fig. 4-10 for models without the dual battery cold start system

1шт.

2

H436311

BOLT

- J-type, special

4шт.

3

D125079

BRACKET

- battery hold-down

4шт.

4

D135073

BRACKET

ROD - battery hold-down

2шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

H673486

LARGE PLATE

TRAY - battery

1шт.

7

H359216

MOUNTING PARTS

INSULATOR - battery tray

4шт.

8

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

12

H433512

CABLE

- battery to battery, positive jumper

1шт.

13

1961010C1

CABLE ASSY.

CABLE - battery, positive, includes protective conduit

1шт.

14

D83485

CABLE,300mm L

STRAP - battery, negative ground

2шт.

15

H675126

BOX

- battery mounting

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

17

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

19

H439338

COVER

- battery box

1шт.

20

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

21

H346650

NUT

- U-type, 5/16 inch NC

6шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

24

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.
