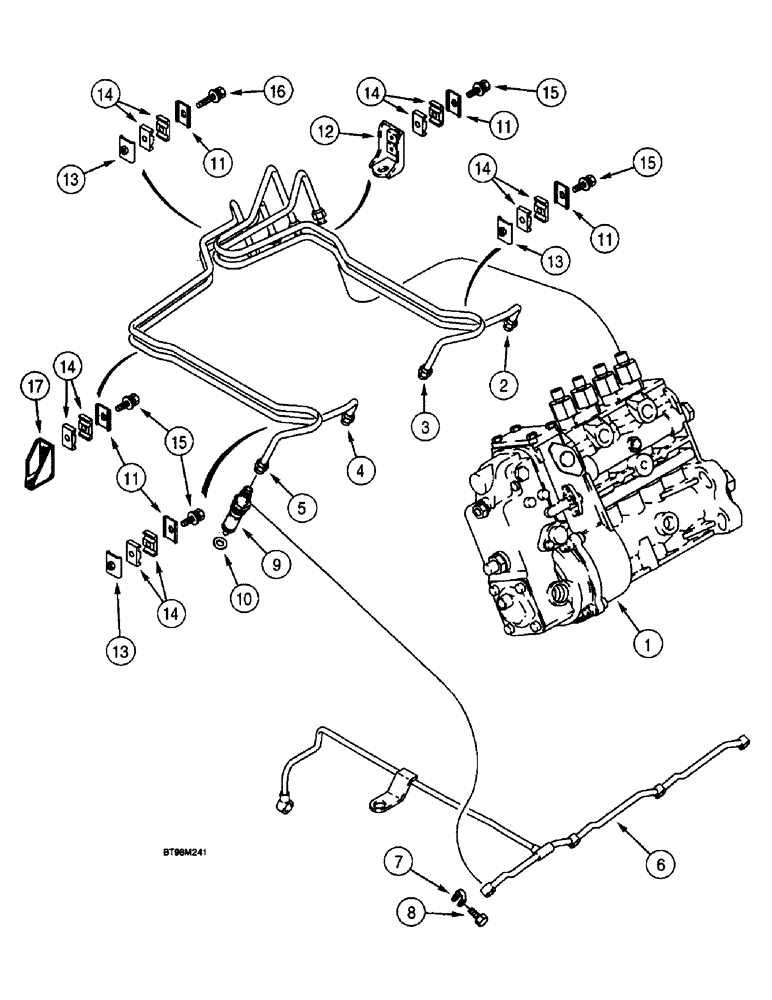

Запчасти Case 660 (3-07A) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE, USE WITH FUEL INJECTION PUMP J931397 (03) - FUEL SYSTEM

1

J931397

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, without aneroid, parts list Fig. 3-11A

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

5

J932160

FUEL TUBE,750 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

6

J927633

TUBE

- manifold, fuel

1шт.

7

J903380

SEAL

- connector

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

9

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection, parts list Fig. 3-14

4шт.

10

REF

INSTRUCTION

SEAL - injector nozzle, 7 mm injector tip, parts list Fig. 3-14

4шт.

11

CURJ904711

CLAMP

BRACKET - fuel tube

5шт.

12

J282942

BRACKET

BRACE - fuel tube

1шт.

13

J917717

BRACE

BRACKET - fuel tube

3шт.

14

J917746

CLAMP

- fuel tube

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

4шт.

16

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm

1шт.

17

J919086

BRACKET

BRACE - fuel tube

1шт.
