(3-05G) - THROTTLE & LINKAGE, USED ON MODELS W/ 4-390 EMISSIONS CERTIFIED ENG., W/ J935677 FUEL INJECTION PUMP

Запчасти Case 660 (3-05G) - THROTTLE & LINKAGE, USED ON MODELS W/ 4-390 EMISSIONS CERTIFIED ENG., W/ J935677 FUEL INJECTION PUMP (03) - FUEL SYSTEM

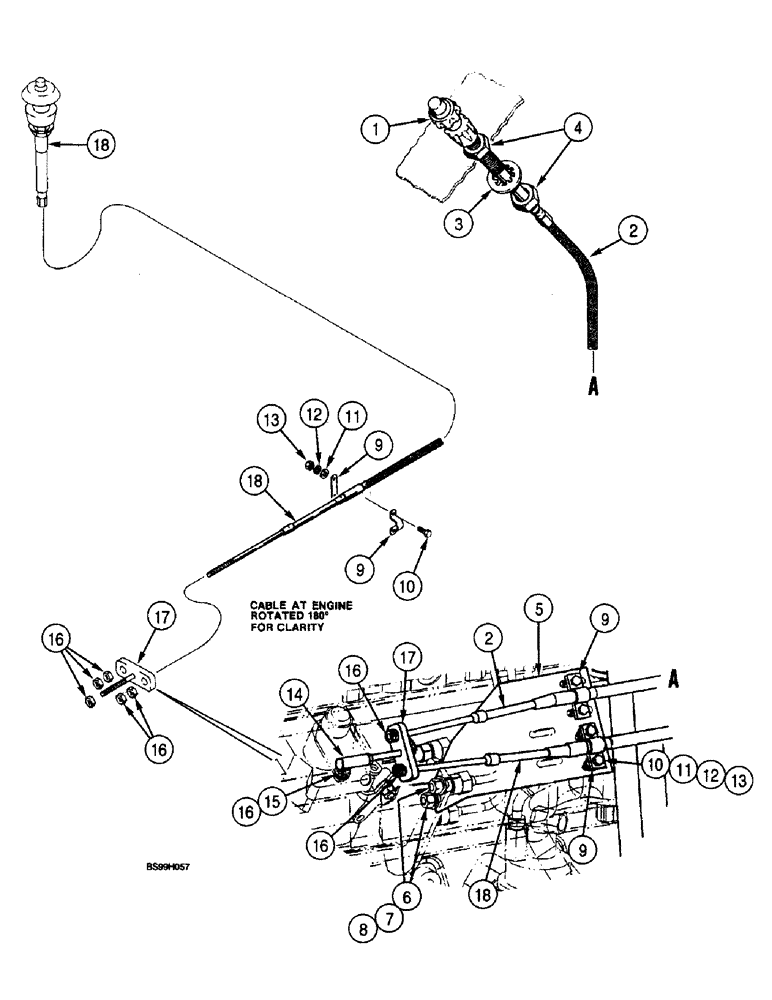

Схема запчастей Case 660 - (3-05G) - THROTTLE & LINKAGE, USED ON MODELS W/ 4-390 EMISSIONS CERTIFIED ENG., W/ J935677 FUEL INJECTION PUMP (03) - FUEL SYSTEM
12
9
a
16
2
a
7
2
13
14
10
17
5
18
16
11
16
18
4
6
9
3
12
16
17
18
9
9
13
15
1
8
10
16
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

282115A1

CABLE

- throttle, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LOCK - friction, throttle cable

1шт.

2

NSS

NOT SOLD SEPARAT

CABLE - throttle

1шт.

3

493-21078

LOCK WASHER,Int Tooth, 3/4"

WASHER - internal tooth lock, 3/4 inch

1шт.

4

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

5

339533A1

BRACKET

- mounting, throttle cable

1шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

8

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

9

L12441

CLAMP

- two-piece

2шт.

10

363-11014

SCREW,Hex Hd, #10-24 x 7/8"

- machine, hex head, No. 10 NC x 7/8 inch

4шт.

11

495-31020

WASHER,#10

flat (13/64" x 15/32" x 3/64") #10

4шт.

12

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

13

225-14110

NUT,#10-24

4шт.

14

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, throttle cable at engine

1шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

16

225-14210

NUT,#10-32

5шт.

17

257177A1

STEM

ROD - throttle

1шт.

18

282115A1

CABLE

- throttle

1шт.

19

321-5288

DECAL

- throttle, installed on hood, not shown

1шт.
