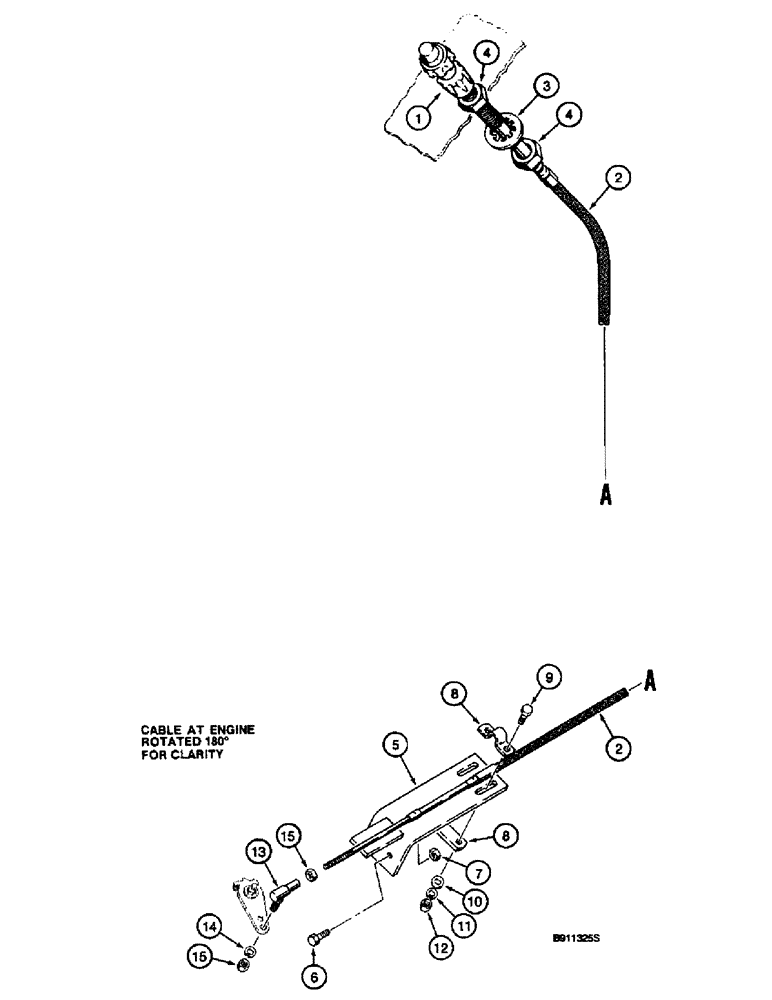

Запчасти Case 660 (3-04) - THROTTLE AND LINKAGE, USED ON MODELS WITH 4-390 ENGINE, WITH J915882 FUEL INJECTION PUMP (03) - FUEL SYSTEM

102696A1

CABLE

ASSEMBLY - throttle, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LOCK - friction, throttle cable

1шт.

2

NSS

NOT SOLD SEPARAT

CABLE - throttle

1шт.

3

493-21078

LOCK WASHER,Int Tooth, 3/4"

WASHER - internal tooth lock, 3/4 inch

1шт.

4

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

5

H672539

BRACKET

- throttle cable mounting

1шт.

6

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

7

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

8

L12441

CLAMP

- two-piece

1шт.

9

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

2шт.

10

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

11

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

12

225-14110

NUT,#10-24

2шт.

13

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, throttle cable at engine

1шт.

14

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

15

225-14210

NUT,#10-32

2шт.
