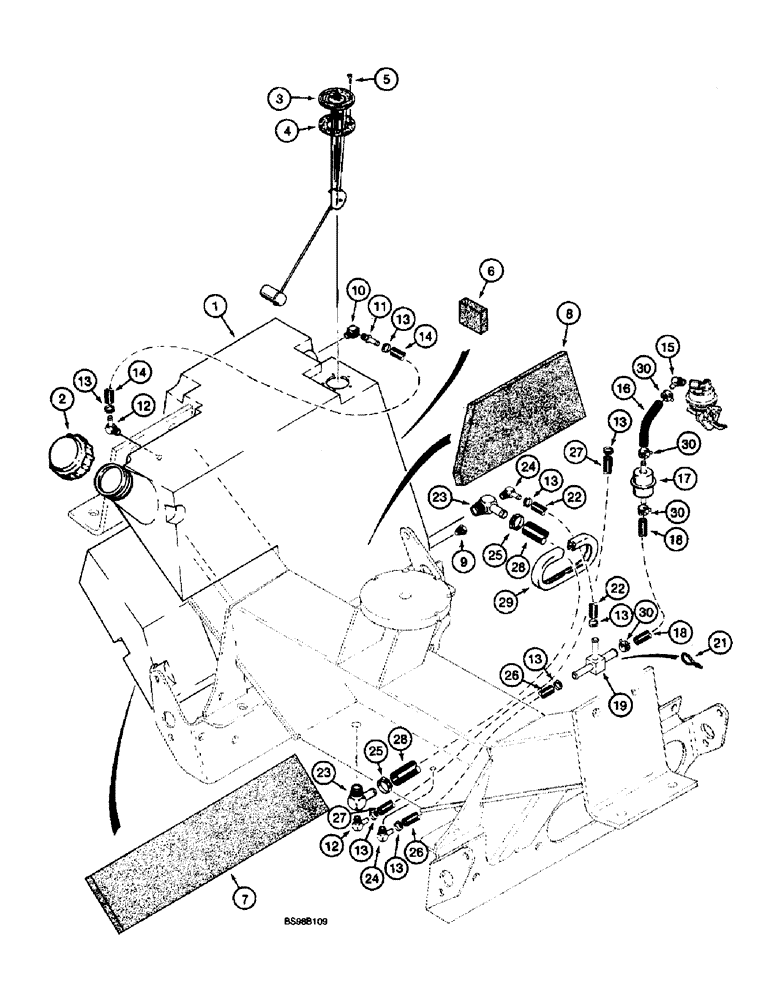

Запчасти Case 660 (3-03A) - FUEL TANK AND LINES, USED ON MODELS WITH 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

H673986

FUEL TANK

TANK - diesel fuel, Includes: Ref. 2

1шт.

2

D150282

CAP

- fuel tank

1шт.

3

118484A1

SENDER UNIT

SENDER - fuel level gauge

1шт.

4

528359R4

GASKET,3.05mm Thk

- fuel level sender

1шт.

5

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

5шт.

6

D79692

PAD

- 51 x 51 x 19 mm, tank mounting

12шт.

7

H438315

PAD

- 560 x 150 x 19 mm, tank mounting

1шт.

8

H438318

PAD

- 335 x 150 x 252 x 19 mm, tank mounting

1шт.

9

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex, 3/8 inch PT

1шт.

10

H437828

FITTING

ELBOW - 90 degree, special

1шт.

11

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER - straight, 1/4 barb end x 1/4 inch PT

1шт.

12

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/4 barb end x 1/4 inch PT

2шт.

13

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable #6, 0.44/0.78 Type M Worm

7шт.

14

S120213

HOSE,0.25" ID x 32.00", SAE 30R6 or SAE 100R3

- Cut from 427683C1 bulk hose, See below, Vent 0.25" ID x 32.00", SAE 30R6 or SAE 100R3

1шт.

15

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/2 stem end x 1/4 inch PT

1шт.

16

309678A1

FUEL HOSE

HOSE - 110 mm (4-15/16 inch) long, fuel filter to fuel pump

1шт.

17

194199A1

FUEL FILTER

FILTER - fuel, in-line

1шт.

18

256825A1

FUEL HOSE

HOSE - 1040 mm (15 inch) long, Serial Range: filter-tee

1шт.

19

256838A1

FITTING

TEE - special

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

H438998

FUEL HOSE

HOSE - 280 mm (11 inch) long, fuel, Serial Range: tank-tee

1шт.

23

H438978

FITTING

ELBOW - 90 degree, special

2шт.

24

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree 3/8 barb end x 1/4 inch PT

2шт.

25

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

26

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

- 680 mm (26-3/4 inch) long, chassis fuel reservoir to tee.

1шт.

27

183281A1

HOSE - 1975 mm (77-3/4 inch) long, cut from 194881A1 bulk hose, fuel return line, see below

1шт.

28

176872A1

AIR HOSE,19.05 mm ID x 600.00 mm, SAE J30, SAE 30R6, SAE 20R4

Tank Crossover 19.05 mm ID x 600.00 mm, SAE J30, SAE 30R6, SAE 20R4

1шт.

29

H438520

ADHESIVE STRIP

TRIM - edge guard

1шт.

30

196252A1

CLAMP

- hose

4шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- 6 (1/4) x 13 (1/2) x 15240 mm (600 inch) long, sold by the foot

1шт.

194881A1

HOSE,7.929mm ID x 305mm L, SAE 30R7

- 7620 mm (300 inch) long

1шт.
