Запчасти Case 660 (3-02) - FUEL TANK AND LINES, USED ON MODELS WITH 4-390 ENGINE (03) - FUEL SYSTEM

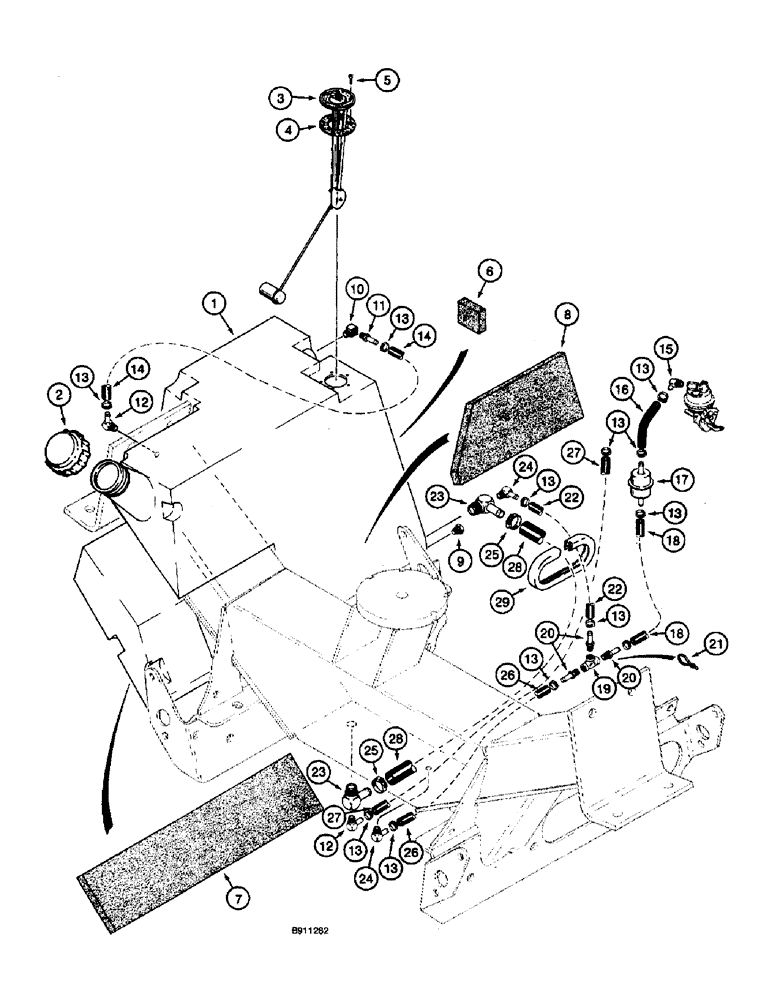

Схема запчастей Case 660 - (3-02) - FUEL TANK AND LINES, USED ON MODELS WITH 4-390 ENGINE (03) - FUEL SYSTEM
28
8
27
28
13
26
7
16
24
15
19
18
13
12
10
26
3
23
17
9
23
11
20
29
2
13
14
22
13
14
24
4
13
12
1
18
13
6
20
13
25
25
5
27
22
13
13
13
21

Артикул

Название

Примечание

Количество

1

H673986

FUEL TANK

TANK - diesel fuel

1шт.

2

D150282

CAP

- fuel tank

1шт.

3

118484A1

SENDER UNIT

SENDER - fuel level gauge

1шт.

4

104812C3

GASKET,3.05mm Thk

- fuel level sender

1шт.

5

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

5шт.

6

D79692

PAD

- 51 x 51 x 19 mm, tank mounting

12шт.

7

H438315

PAD

- 560 x 150 x 19 mm, tank mounting

1шт.

8

H438318

PAD

- 335 x 150 x 252 x 19 mm, tank mounting

1шт.

9

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex, 3/8 inch PT

1шт.

10

H437828

FITTING

ELBOW - 90 degree, special

1шт.

11

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER - straight, 1/4 barb end x 1/4 inch PT

1шт.

12

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/4 barb end x 1/4 inch PT

2шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

7шт.

14

S120213

HOSE,0.25" ID x 32.00", SAE 30R6 or SAE 100R3

- Cut from 427683C1 bulk hose, See below, Vent 0.25" ID x 32.00", SAE 30R6 or SAE 100R3

1шт.

15

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 45 degree, 3/8 stem end x 1/4 inch PT

1шт.

16

D138967

FUEL HOSE

HOSE - 80 mm (3-1/8 inch) long, cut from A21561X bulk hose, fuel filter to fuel pump, see below

1шт.

17

D139225

FILTER, FUEL

FILTER - fuel, in-line, in

1шт.

18

H438977

FUEL HOSE,9.53 mm ID x 1040.0 mm, SAE 30R6

Filter to tee 9.53 mm ID x 1040.0 mm, SAE 30R6

1шт.

19

221-422

TEE,Pipe, 1/4" NPT

- pipe, 1/4 inch

1шт.

20

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight 3/8" Hose X 1/4" NPTF Beaded

3шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

H438998

FUEL HOSE

HOSE - 280 mm (11 inch) long, fuel, Serial Range: tank-tee

1шт.

23

H438978

FITTING

ELBOW - 90 degree, special

2шт.

24

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 3/8 barb end x 1/4 inch PT

2шт.

25

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

26

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

- 680 mm (26-3/4 inch) long, chassis fuel reservoir to tee

1шт.

27

D127925

HOSE,6.35 mm ID x 1420.00 mm, SAE 30R6 or SAE 30R7

Fuel Return, Cut from P/N A21561X Bulk Hose, See Below 6.35 mm ID x 1420.00 mm, SAE 30R6 or SAE 30R7

1шт.

28

D126774

HOSE,19.05 mm ID x 560.00 mm, SAE 30R2 TYPE 1

Cut from S118382X Bulk Hose, Tank Crossover, See Below 19.05 mm ID x 560.00 mm, SAE 30R2 TYPE 1

1шт.

29

H438520

ADHESIVE STRIP

TRIM - edge guard

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- 6 (1/4) x 13 (1/2) x 15240 mm (600 inch) long, sold by the foot

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

- 6 (1/4) x 13 (1/2) x 7620 mm (300 inch) long

1шт.

S118382X

LARGE HOSE

HOSE - 19 (3/4) x 32 (1-1/4) x 6096 mm (240 inch) long, sold by the foot

1шт.
