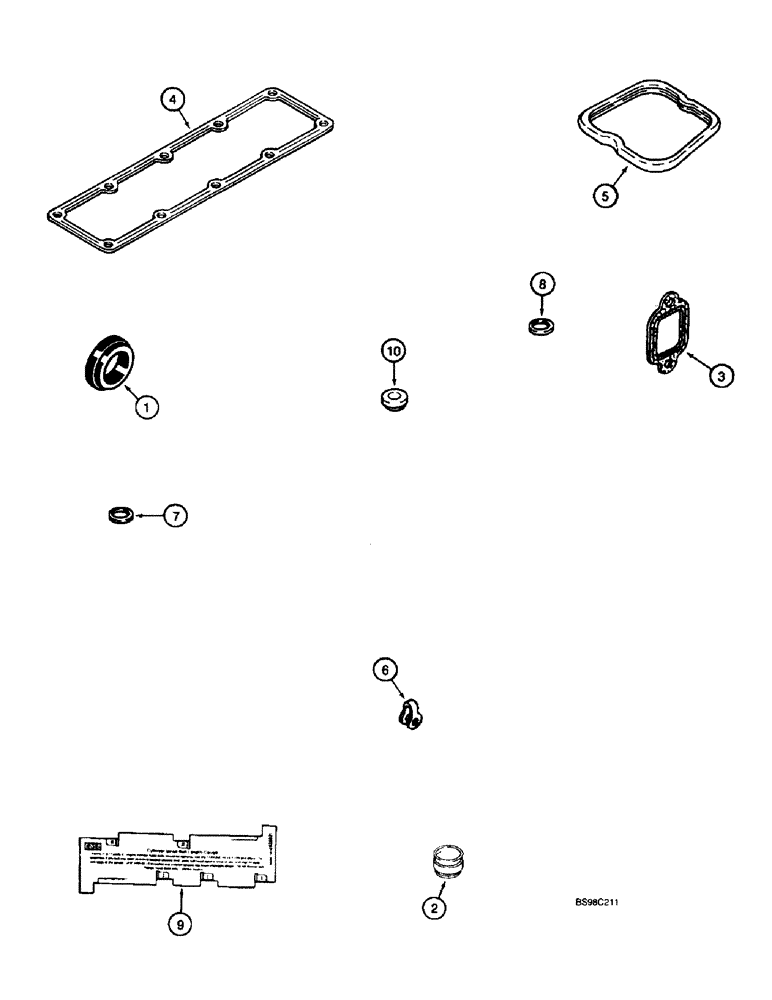

Запчасти Case 660 (2-40) - GASKET KIT, 4-390 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE

A77911

SEAL PACKAGE

KIT - gasket, valve grind, Includes: Ref. 1 - 10

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, Fig. 2-23A.

1шт.

1

J923331

GASKET

- thermostat housing

1шт.

2

J921640

SEAL

- valve, intake, identified by color black with orange band, replaces J901097 seal

8шт.

3

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

4

J938153

MANIFOLD GASKET,0.8mm Thk

- intake manifold

1шт.

5

J930906

GASKET

SEAL - rocker arm cover

4шт.

6

J903380

SEAL

- connector, fuel drain manifold tube

4шт.

7

J930324

SEAL

- injector nozzle, 7 mm injector tip

4шт.

8

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

4шт.

9

J823921

GAUGE

- cylinder head, bolt length

1шт.

10

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

- noise, rocker arm cover, replaces J935449 isolator

4шт.
