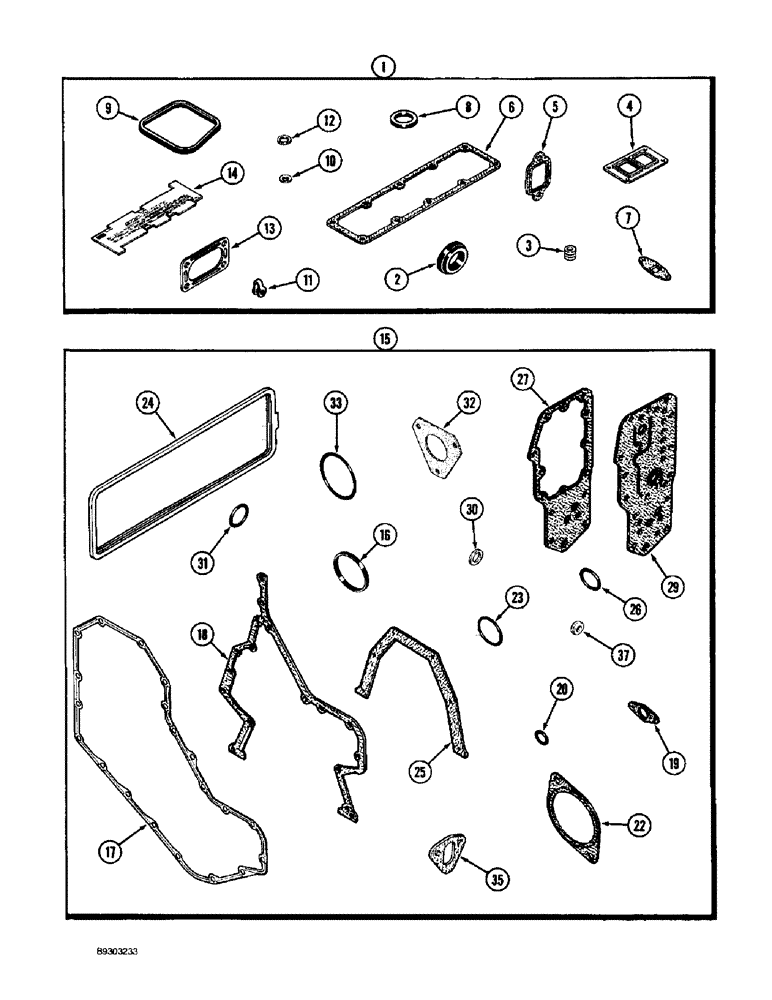

Запчасти Case 660 (2-38) - ENGINE GASKET KITS, 4-390 ENGINE (02) - ENGINE

1

A77792

GASKET KIT

KIT - gasket, valve grind, see A below, Includes: Ref. 1 - 14

1шт.

2

J920020

GASKET

- thermostat housing

1шт.

3

J901097

SEAL

- valve

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold

1шт.

7

J914388

GASKET

- turbo oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker arm cover

4шт.

10

J920174

PACKING RING

SEAL - injector, tip

4шт.

11

J903380

SEAL

- connector

4шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

1шт.

13

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

14

J823921

GAUGE

- cylinder head, bolt length

1шт.

15

A77671

GASKET KIT

KIT - gasket, engine block, see B below, Includes: Ref. 15 - 37

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, cylinder block

1шт.

17

J914385

GASKET,1.02mm Thk

- front cover, to housing, cylinder block

1шт.

18

J916131

GASKET

- gear housing, to block, cylinder

1шт.

19

J905595

GASKET

- timing pin housing, cylinder block

1шт.

20

J913994

O-RING

- sealing, cylinder block

1шт.

22

J919601

GASKET

- access cover plate, cylinder block

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Cylinder block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J904056

GASKET

- tappet cover, cylinder block

1шт.

25

J914386

GASKET

- rear cover retainer, cylinder block

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, cylinder block

1шт.

27

J918256

GASKET

- cooler core, oil, cylinder block

1шт.

29

J918257

GASKET

- filter head, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID, cylinder block

1шт.

32

J914389

GASKET

- pump mounting, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, cylinder block

1шт.

35

J914304

GASKET

- mounting, fuel transfer pump, cylinder block

1шт.

37

J900267

SEAL

- cover bolt, cylinder block

4шт.
