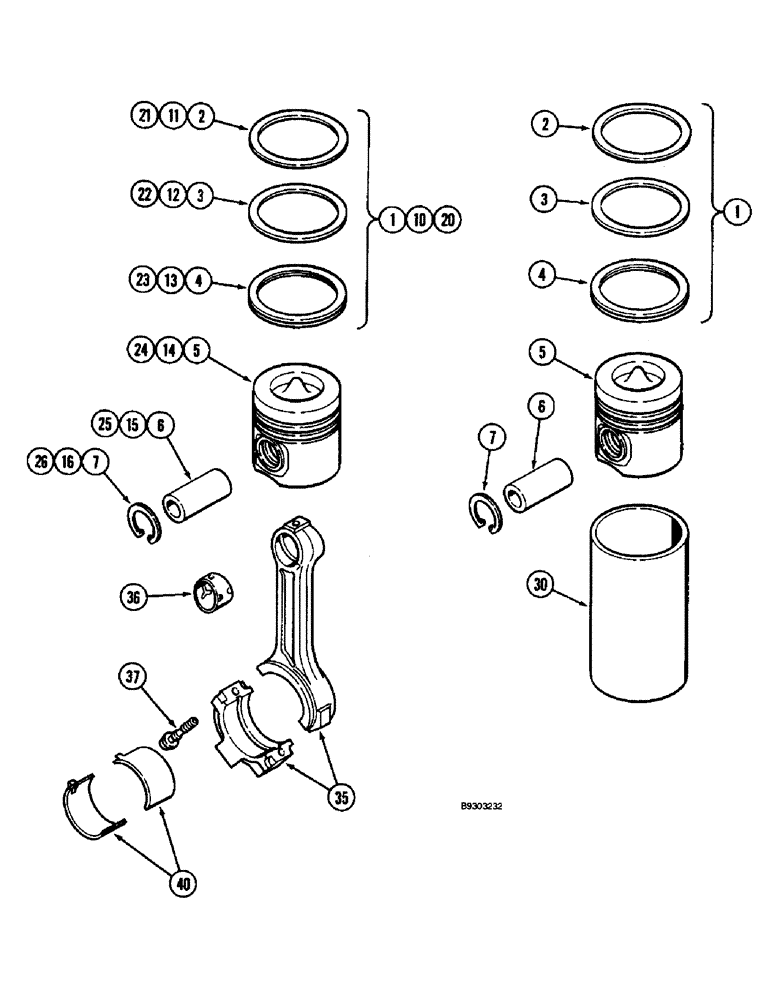

Запчасти Case 660 (2-36) - PISTONS, 4-390 ENGINE (02) - ENGINE

A77410

PISTON

KIT - piston, standard, Includes: Ref. 1 - 7

4шт.

1

A77401

PISTON RING SET

KIT - ring, standard, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine, standard

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- snap

2шт.

A77411

PISTON

KIT - piston, 0.5 mm oversize, Includes: Ref. 10 - 16

4шт.

10

A77463

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - engine, 0.5 mm oversize

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- snap

2шт.

A77412

PISTON

KIT - piston, 1.0 mm oversize, Includes: Ref. 20 - 26

4шт.

20

A77464

PISTON RING SET

KIT - ring, 1.0 mm oversize, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - engine, 1.0 mm oversize

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- snap

2шт.

30

J904166

SLEEVE

LINER - piston, used only in engine block repair (when liner is installed, use only A77410 piston kit)

1шт.

JR901569

ROD

ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC901569

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 35 and 36

4шт.

84145405R

REMAN-CONNECTING ROD

660 (4/93-), Reman For New P/N J901569

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin, order J901569 rod assembly, connecting

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

40

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, connecting rod

4шт.

40

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm oversize, connecting rod

4шт.

40

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm oversize, connecting rod

4шт.

40

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm oversize, connecting rod

4шт.

40

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm oversize, connecting rod

4шт.
