Запчасти Case 660 (2-35A) - FLYWHEEL AND HOUSING, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

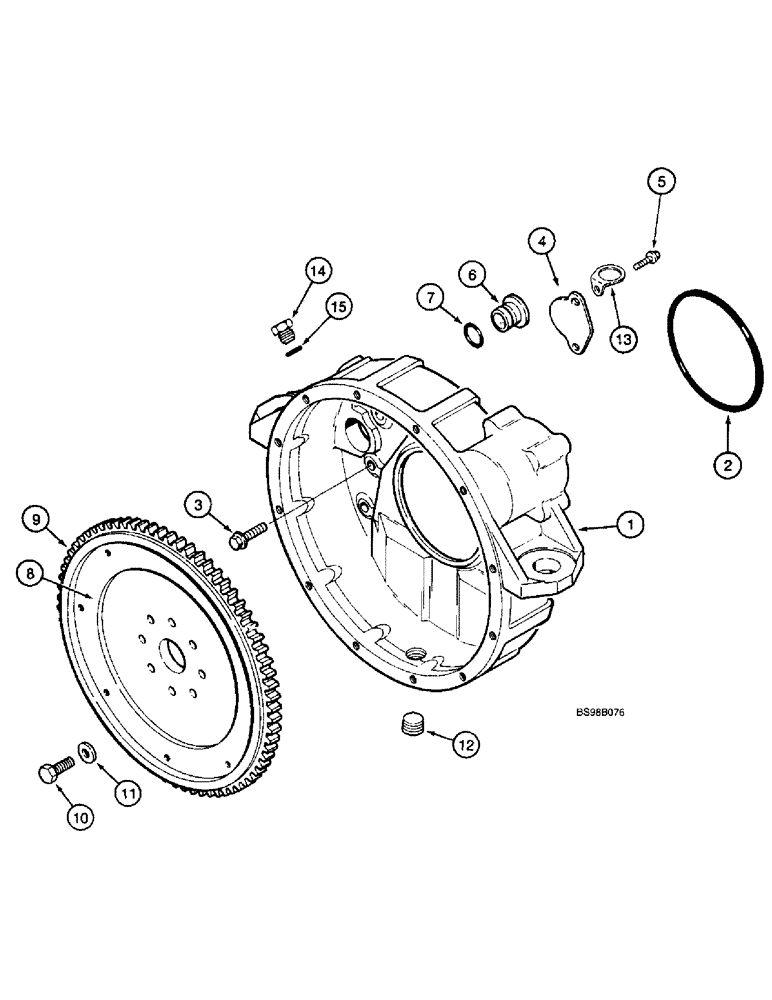

Схема запчастей Case 660 - (2-35A) - FLYWHEEL AND HOUSING, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
3
1
9
7
8
6
12
2
5
11
14
15
4
10
13

Артикул

Название

Примечание

Количество

1

J931714

HOUSING

- flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

4

J925234

PLATE

- cover

1шт.

5

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm

2шт.

6

J910248

PLUG

- flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

J902569

FLYWHEEL

ASSEMBLY - crankshaft, includes ring gear, Includes: Ref. 9

1шт.

9

J901774

GEAR,Flywheel

GEAR - ring

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.

12

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC, Sq. Soc, 3/4"-14 NPTF

1шт.

13

J928989

CLIP

- retaining

1шт.

14

214389

PLUG,3/4" - 16 ORB

Includes Ref. 15 Hex Hd, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Выбрано товаров: 15
