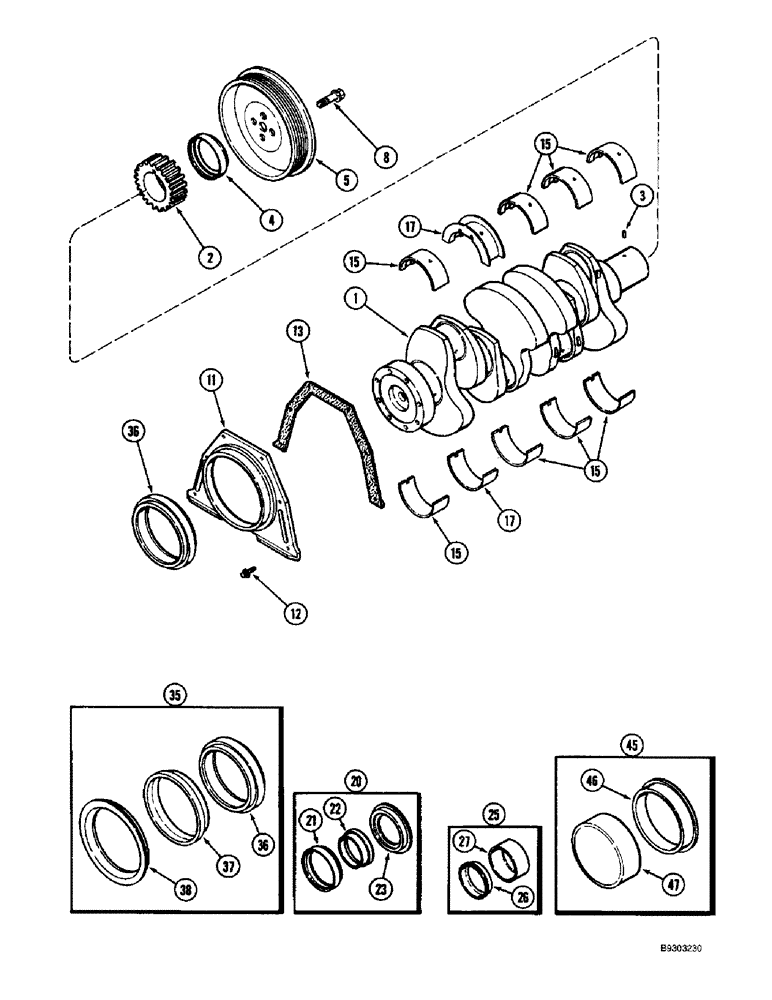

Запчасти Case 660 (2-32) - CRANKSHAFT, 4-390 ENGINE (02) - ENGINE

JR918323

CRANKSHAFT

ASSEMBLY - engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

J929036R

REMAN-CRANKSHAFT

660 (4/93-), Reman For New P/N JR918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC918323

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft core for credit when using a remanufactured assembly

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

660 (4/93-), Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J919681

PINION

GEAR - crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order item 20, J904353 kit

1шт.

5

J914494

PULLEY,181.25mm OD

- crankshaft vibration damper

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, special, 12 - 1.25 x 36 mm

4шт.

11

J921043

REAR COVER

RETAINER - seal, rear cover

1шт.

12

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

J914386

GASKET

- rear cover retainer

1шт.

15

A77405

CRANKSHAFT BEARING

BEARING - main, upper and lower set, standard

4шт.

15

A77472

BEARING SET

BEARING - main, upper and lower set, 0.25 mm undersize

4шт.

15

A77474

BEARING SET

BEARING - main, upper and lower set, 0.50 mm undersize

4шт.

15

A77476

BEARING SET

BEARING - main, upper and lower set, 0.75 mm undersize

4шт.

15

A77478

BEARING SET

BEARING - main, upper and lower set, 1.00 mm undersize

4шт.

17

A77406

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, standard

1шт.

17

A77473

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.25 mm undersize

1шт.

17

A77475

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize

1шт.

17

A77477

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.75 mm undersize

1шт.

17

A77479

THRUST BEARING

BEARING - main thrust, upper and lower set, 1.00 mm undersize

1шт.

20

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

SLEEVE - wear, crankshaft front, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J909411

SEAL

KIT - oil seal, crankshaft rear, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

38

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

45

J906081

SLEEVE

KIT - wear sleeve, crankshaft rear, Includes: Ref. 46 and 47

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

47

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
