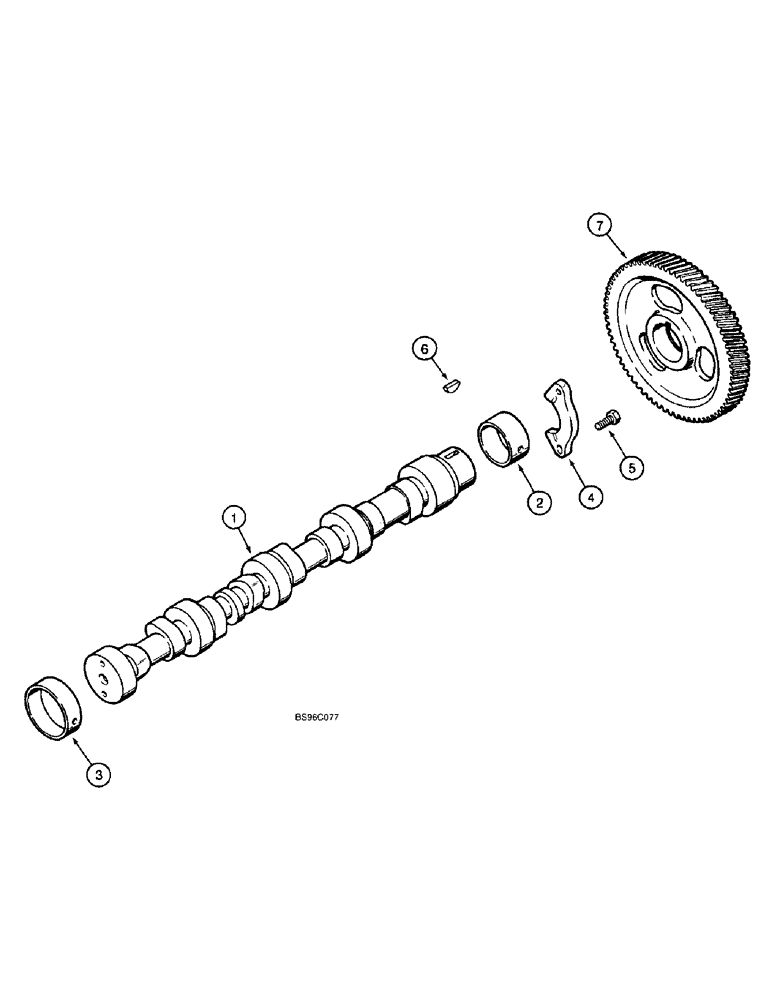

Запчасти Case 660 (2-27A) - CAMSHAFT, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J929039

CAMSHAFT

- engine

1шт.

J929039R

REMAN-CAMSHAFT

660

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

- camshaft, front

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear, service repair only

4шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order and install Ref. 3, J903242 bushings shown above.

1шт.

4

J927155

SUPPORT

- thrust, camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

Camshaft gear M4 x 6.5 x 15.72

1шт.

7

J929030

PINION

GEAR - camshaft

1шт.
