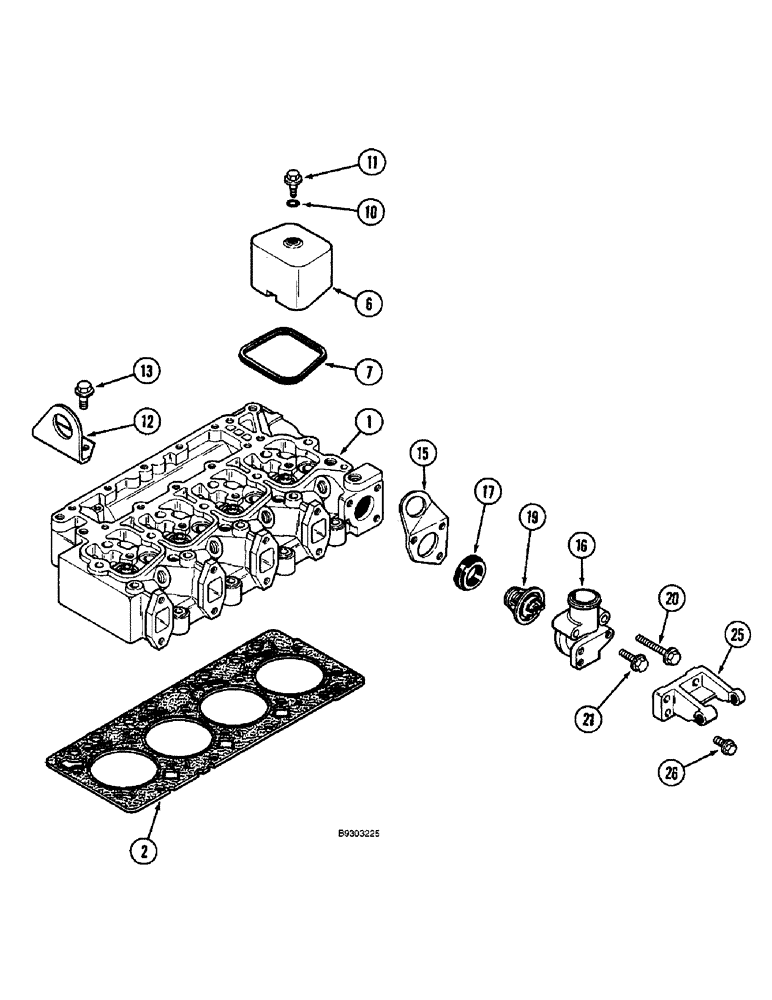

Запчасти Case 660 (2-22) - CYLINDER HEAD AND COVERS, 4-390 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, engine, see Fig. 2-24 for component parts list

1шт.

2

J921393

GASKET

- cylinder head, standard

1шт.

2

J921395

CYLINDER HEAD GASKET

- head, 2 notches, 0.25 mm thicker

1шт.

2

J921397

GASKET

- head, 3 notches, 0.50 mm thicker

1шт.

6

J902604

COVER

- rocker arm

4шт.

7

J902666

GASKET

SEAL - rocker arm cover

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

4шт.

11

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

12

J908118

BRACKET

- lifting, rear

1шт.

13

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

15

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

16

J914409

HOUSING

- thermostat, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat, thermostat and housing

1шт.

17

J920020

GASKET

- thermostat housing, thermostat and housing

1шт.

19

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, thermostat and housing

1шт.

20

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT - heavy hex flange, 8 - 1.25 x 70 mm, thermostat and housing

2шт.

21

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

25

J910713

SUPPORT

- alternator mounting, thermostat and housing

1шт.

26

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.
