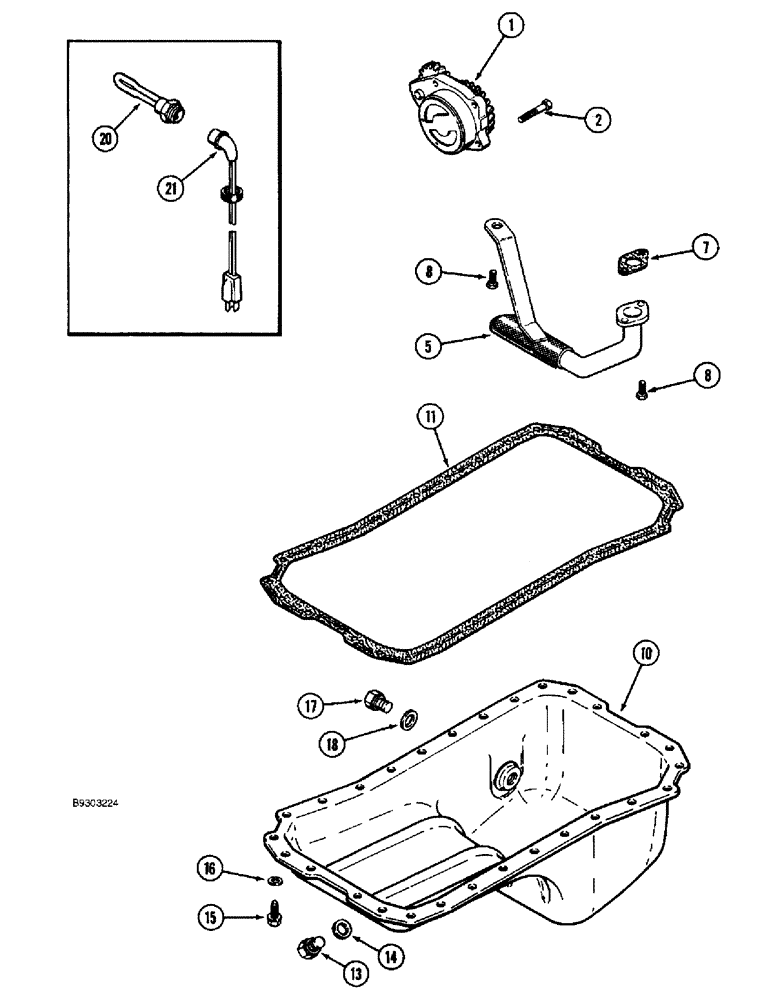

Запчасти Case 660 (2-20) - OIL PUMP AND OIL PAN, 4-390 ENGINE (02) - ENGINE

1

J918211

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine

1шт.

JR918211

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - oil, remanufactured, North America only

1шт.

JC918211

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25

4шт.

5

J905205

TUBE,1" OD

TUBE - suction, oil

1шт.

7

J914383

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of Gasket Kit, P/N A77673

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

10

J901049

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77673 gasket kit

1шт.

Part of Gasket Kit, P/N A77673

1шт.

13

J911638

PLUG,M18 x 1.5

PLUG - drain, oil, magnetic, 18 mm

1шт.

14

J900216

PACKING RING

WASHER - sealing, drain plug

1шт.

Part of Gasket Kit, P/N A77673

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

28шт.

16

J907537

SPRING WASHER

WASHER - Belleville spring, oil pan bolt

28шт.

17

J904386

PLUG

PLUG - pipe, heater

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

When engine oil heat kit is ordered, J902425 washer, Ref. 18 must also is ordered

1шт.

A77673

GASKET KIT

KIT - gasket, oil pan, Includes: Ref. 7, 11, and 14

1шт.

A77490

KIT

KIT - heater, engine oil, Includes: Ref. 20 and 21

1шт.

When engine oil heat kit is ordered, J902425 washer, Ref. 18 must also is ordered

1шт.

20

NSS

NOT SOLD SEPARAT

ELEMENT - heater, order A77490 heater kit

1шт.

21

J905113

CABLE

CABLE - engine block heater, oil

1шт.
