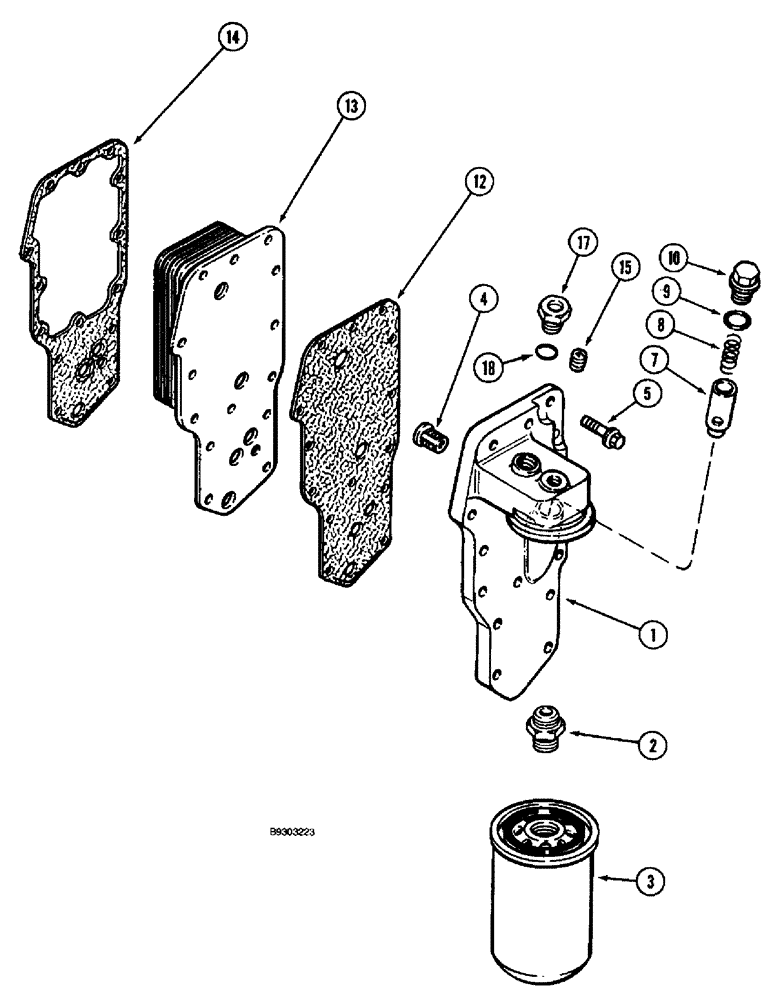

Запчасти Case 660 (2-18) - OIL FILTER AND COOLER, 4-390 ENGINE (02) - ENGINE

J918954

HEAD

ASSEMBLY - oil filter and cooler, Includes: Ref. 1 and 2

1шт.

1

J918328

HEAD

- lube oil filter

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER - engine oil, cartridge

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

A77764

PACKAGE

KIT - oil pressure regulator, Includes: Ref. 7 and 8

1шт.

7

J918428

PLUNGER

- regulator, pressure

1шт.

8

J918427

SPRING

- compression, 54 mm free length

1шт.

9

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

10

J915787

PLUG

- threaded

1шт.

12

J918257

GASKET

- filter head

1шт.

13

J921557

COOLER

CORE - cooler, oil

1шт.

14

J918256

GASKET

- cooler core, oil

1шт.

15

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

17

J919686

PLUG

ASSEMBLY - hex, 12 mm threaded, Includes: Ref. 18

1шт.

18

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.
