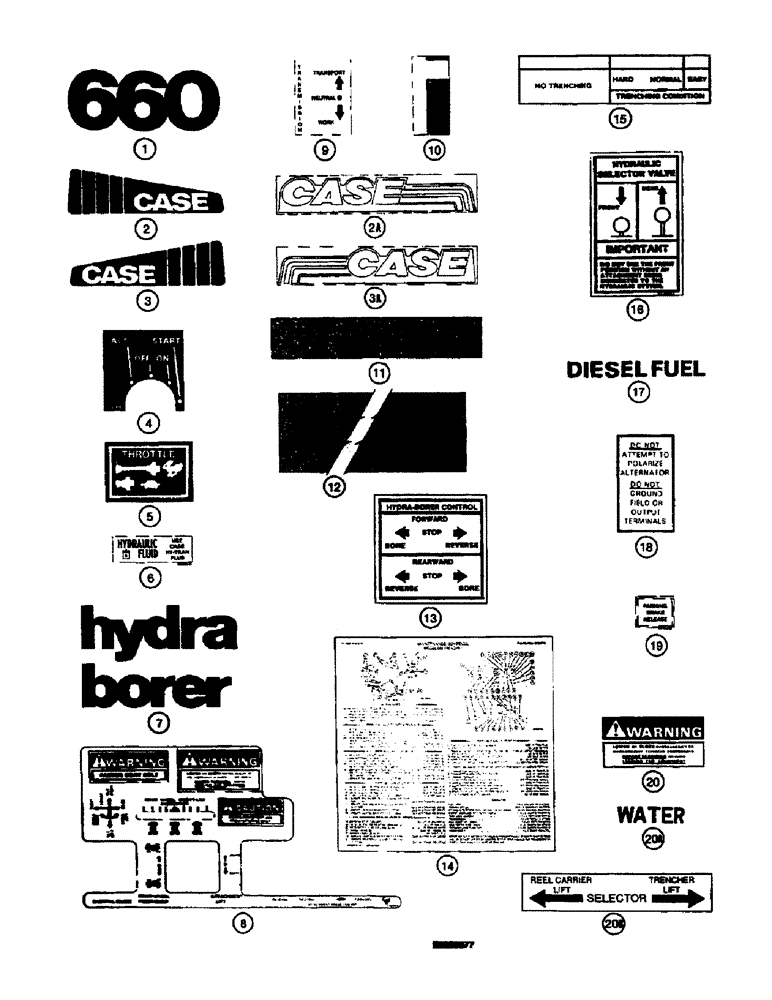

Запчасти Case 660 (9-120) - DECALS (09) - CHASSIS/ATTACHMENTS

1

H439062

DECAL

- 660, model number, brown

2шт.

1

179077A1

DECAL

- 660, model number, gray

2шт.

2

H438241

DECAL

- Case, with treads, right-hand, brown

1шт.

2a

179220A2

DECAL

- Case, with stripes, right-hand, gray

1шт.

3

H438240

DECAL

- Case, with treads, left-hand, brown

1шт.

3a

179219A2

DECAL

- Case, with stripes, left-hand, gray

1шт.

4

D123946

DECAL

- ignition switch pattern, brown with white letters

1шт.

4

140219A2

DECAL

- ignition switch pattern, black with white letters

1шт.

5

321-5288

DECAL

- throttle

1шт.

6

H438541

DECAL

- hydraulic fluid, use Case hy-tran plus

1шт.

7

H427880

DECAL

- hydra-borer

1шт.

8

H438325

DECAL

- side console, attachments, real wheel positioner and rear wheel position indicator, brown with white letters, also Includes: Ref. 20, 21 and 32, see note below

1шт.

8

178944A1

DECAL

- side console, attachments, rear wheel positioner and rear wheel position indicator, black with white letters, also Includes: Ref. 21, 21 and 32 see note below

1шт.

9

H438323

DECAL

- shift pattern, brown with white letters

1шт.

9

178937A1

DECAL

- shift pattern, black with white letters

1шт.

10

H438327

DECAL

- hydraulic oil reservior level

1шт.

11

H431171

ADHESIVE STRIP

STRIP - anti-skid, 406 mm (16 inch) long, cut from H431205 bulk strip, hydraulic oil reservior, see below

3шт.

12

H434210

ADHESIVE STRIP

STRIP - anti-skid, 495 mm (19-1/2 inch) long, cut from H433994 bulk strip, hydraulic oil reservoir and battery box cover, see below

3шт.

13

H434251

DECAL

- hydra-borer control

1шт.

14

8-80970

DECAL

- maintenance schedule

1шт.

15

H434352

DECAL

- trenching chainline speed control pattern, brown letters

1шт.

15

178936A1

DECAL

- trenching chainline speed control pattern, black letters

1шт.

16

H434356

DECAL

- hydraulic selector valve

1шт.

17

321-230

DECAL

- diesel fuel

1шт.

18

321-1061

DECAL

- do not attempt to polarize alternator

1шт.

19

H418020

DECAL

- parking brake release

1шт.

20

321-3042

DECAL

- Warning, lower or block hydraulically or mechanically, this decal is a part of H438325 and 178944A1, Ref. 8

1шт.

20a

321-719

DECAL

- water

1шт.

20b

H439403

DECAL

- selector, reel carrier lift/trencher lift, brown with white letters

1шт.

20b

180466A1

DECAL

- selector, reel carrier lift/trencher lift, black with white letters

1шт.

H431205

ADHESIVE STRIP

STRIP - anti-skid, bulk, 635 mm (25 inch) long

1шт.

H433994

BAND

STRIP - anti-skid, bulk, 690 mm (27 inch) long

1шт.

21

321-3060

DECAL

- Warning, fasten seat belt, this decal is a part of H438325 and 178944A1 decals, Ref. 8

1шт.

22

321-3214

DECAL

- Warning, personnel must be clear of digging chain

3шт.

23

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

24

321-3705

DECAL

- Warning, before starting engine

1шт.

25

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

26

321-3905

DECAL

- Warning, operate this unit from operator's seat only

1шт.

27

321-5501

DECAL

- Caution, stop the machine

2шт.

28

321-5701

DECAL

- Warning, do not remove engine side panels

2шт.

29

H438999

DECAL

- Danger, sharp moving parts, keep clear, located on crumber mounting bracket

2шт.

30

321-6672

DECAL

- Warning, check and service cooling system

1шт.

31

H438909

DECAL

- Danger, sharp moving parts, keep clear, 60 x 470 mm long, located on crumber boom

2шт.

32

321-6710

DECAL

- Caution, during transport use front steering only, this decal is a part of H43825 and 178944A1 decals, Ref. 8

1шт.

33

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

34

321-6715

DECAL

- Warning, rotating machine parts

2шт.

35

321-6746

DECAL

- Warning, your seat belt has non-locking retractors

1шт.

36

H433813

DECAL

- 4 wheel steer, brown letters

2шт.

36

179076A1

DECAL

- 4 wheel steer, gray letters

2шт.

37

H438908

DECAL

- Danger, sharp moving parts, keep clear, 110 x 110 mm long, located on trencher frame

3шт.

38

H438522

DECAL

- supply, return

2шт.

39

H437833

DECAL

- Important, maintain chain drive planetary oil level

1шт.

40

H438910

DECAL

- Danger

1шт.

41

H438563

DECAL

- hydraulic selector valve, brown with white letters

1шт.

41

178941A1

DECAL

- hydraulic selector valve, black with white letters

1шт.

42

H438324

DECAL

- ground drive controls, brown letters and symbols

1шт.

42

178945A1

DECAL

- ground drive controls, black letters and symbols

1шт.

43

321-7030

WARNING DECAL

DECAL, WARNING, Do Not Jump - Use Seat Belt

2шт.

44

321-4614

TAG

- do not operate

1шт.

45

321-4739

EMBLEM

- Case, if used

1шт.

45a

186989A1

EMBLEM

- Case, if used

1шт.

46

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push-on type

2шт.

47

106248A1

DECAL

- hydraulic crumber

1шт.

48

112038A1

DECAL

- rear sheel position indicator

1шт.

49

D124152

DECAL

- ether starting aid

1шт.
