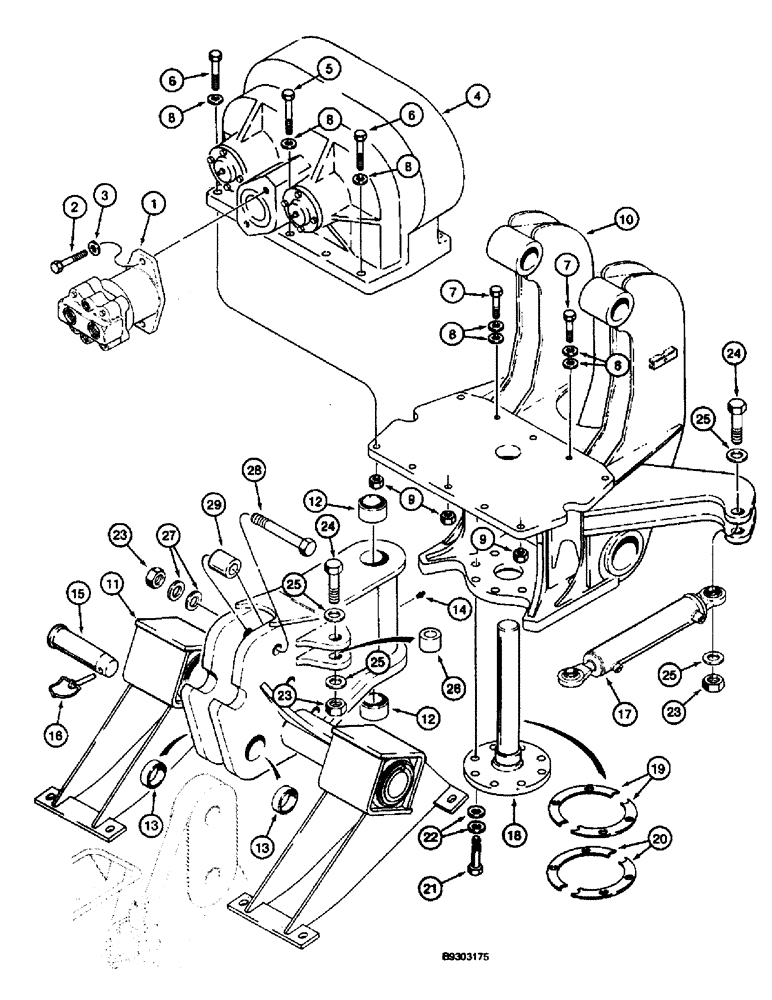

Запчасти Case 660 (9-115E) - PLOW MOTOR, GEARBOX AND BLADE MOUNTING, FOR INTEGRAL QUAD FRAME (09) - CHASSIS/ATTACHMENTS

1

H674364

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic drive, plow, parts list figure 8-104A

1шт.

1

1971652C1

REMAN-HYD MOTOR

Remanufactured HYDRAULIC MOTOR

1шт.

1

1971653C1

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

H274894

WASHER

- flat, special

2шт.

4

H563619

BOX

GEARBOX ASSEMBLY - plow, shaker, parts list figure 9-115G

1шт.

5

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

6

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

7шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

H274894

WASHER

- flat, special

12шт.

9

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

8шт.

10

114981A1

CHASSIS

FRAME - plow gearbox mounting

1шт.

105966A1

MOUNTING PARTS

BRACKET - plow blade mounting, see Machinery Price List for plow blade and chute information, Includes: Ref. 11 -13

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - plow blade mounting

1шт.

12

105870A1

BUSHING

- bracket, upper and lower

2шт.

13

H437099

BUSHING

- bracket, sides

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

15

H437057

PIN

- plow blade retaining

2шт.

16

D130037

HEADED PIN,8.73mm OD

PIN - locking, plow blade retaining pin

2шт.

17

111620A1

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 203 mm (8 inch) stroke, plow blade steering, parts list figure 8-103A

1шт.

18

104797A2

AXLE

PIN - plow blade pivot

1шт.

19

104799A2

SHIM

- 1/32 inch thick

1шт.

20

105866A2

SHIM

- 7/64 inch thick

1шт.

21

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

4шт.

22

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

23

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

4шт.

24

413-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

- hex, 1 NC x 3-3/4 inch

2шт.

25

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

4шт.

26

114879A1

SPACER

- rod end

1шт.

27

H435357

WASHER

- disc-locking, special

6шт.

28

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

3шт.

29

H435475

SPACER

- blade mounting bracket

1шт.
