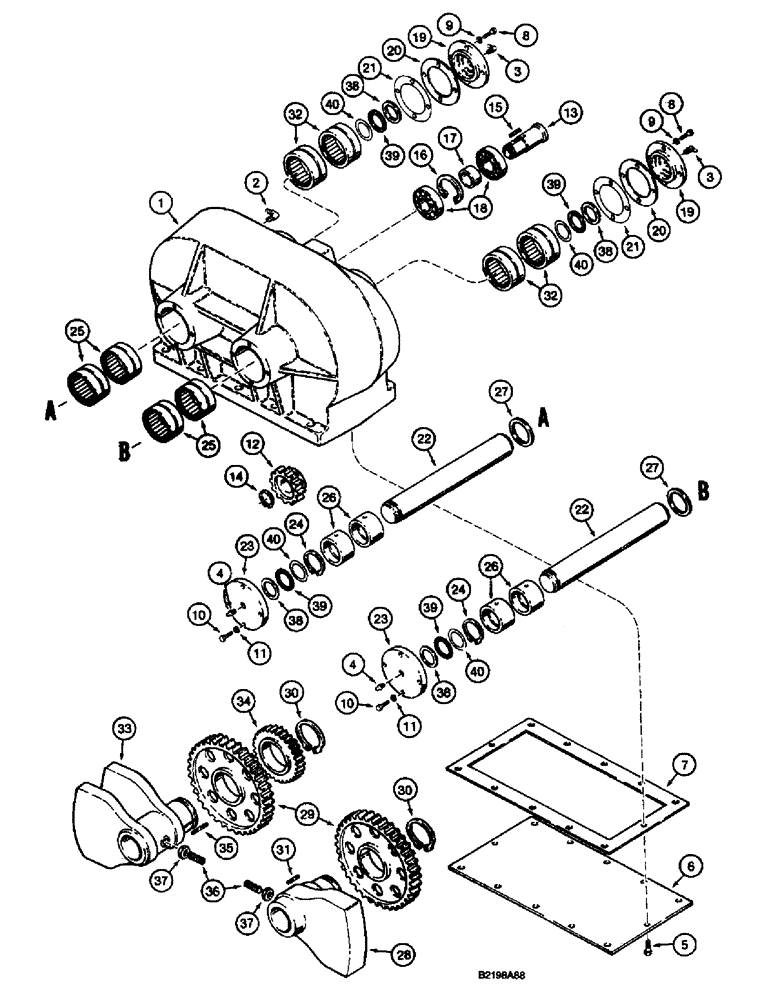

Запчасти Case 660 (9-114) - PLOW GEARBOX - H674911, FOR ALL TRENCHERS EXCEPT INTEGRAL QUAD (09) - CHASSIS/ATTACHMENTS

H674911

BOX

GEARBOX ASSEMBLY - plow shaker, Includes: Ref. 1 - 40

1шт.

1

H434378

CASE

HOUSING - gearbox

1шт.

2

222-763

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/4" NPT

- 90 degree, 7/16-20 45 degree flare x 1/4 inch PT

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

H436310

LARGE PLATE

PLATE - cover, gearbox housing

1шт.

7

H146464

GASKET

- housing

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

8шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

12

H434401

GEAR

- drive

1шт.

13

H434385

DRIVE SHAFT

SHAFT - drive

1шт.

14

100-11150

SNAP RING,#150, Ext

Ring, Snap, , shaft #150, Ext

1шт.

15

H380030

KEY

- square, 1/4 x 1-3/8 inch

1шт.

16

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, , Brg 3.156", Int, #315

1шт.

17

H189795

SPACER

- bearing

1шт.

18

H753194

BEARING

- drive shaft

2шт.

19

H436676

BEARING CAP

CAP - bearing, front

2шт.

20

H151779

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

21

H151787

SHIM,.015" Thk

(0.381 mm) .015" Thk

1шт.

22

H436675

SHAFT

- bearing

2шт.

23

H436677

CAP

- bearing, rear

2шт.

24

100-18250

SNAP RING,#250, Ext

Ring, Snap, , Bearing #250, Ext

2шт.

25

H759123

ROLLER BEARING

BEARING - roller, matched set, rear, set of two

2шт.

26

H759125

RACE

- bearing, set of two

2шт.

27

A54021

WASHER

RACE - thrust, race, bearing

2шт.

28

H438979

BALANCER

COUNTERWEIGHT - single, shaft

1шт.

29

H434403

GEAR

- driven, counterweight shaft, vibrator

2шт.

30

39323

SNAP RING,#325, Ext

Ring, Snap, , gear #325, Ext

2шт.

31

H43380

KEY

- square, 6.35 x 28.5 mm long

1шт.

32

H759124

ROLLER BEARING

BEARING - roller, matched set, front, set of two

2шт.

33

H438980

BALANCER

COUNTERWEIGHT - divided, shaft

1шт.

34

H434402

GEAR

- driven

1шт.

35

H434406

KEY

- square, 1/4 (6.35) x 2-1/8 (54 mm) long

1шт.

36

83-66232

SET SCREW,Hex Soc, 5/8"-11 x 2"

SCREW - set, hex socket headless, 5/8 NC x 2 inch, half dog point

2шт.

37

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

2шт.

38

H147793

WASHER

- thrust, 2.41 mm (0.095 inch) thick

1шт.

39

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - thrust

4шт.

40

H147785

BEARING WASHER

WASHER - thrust, 0.787 mm (0.031 inch) thick

1шт.
