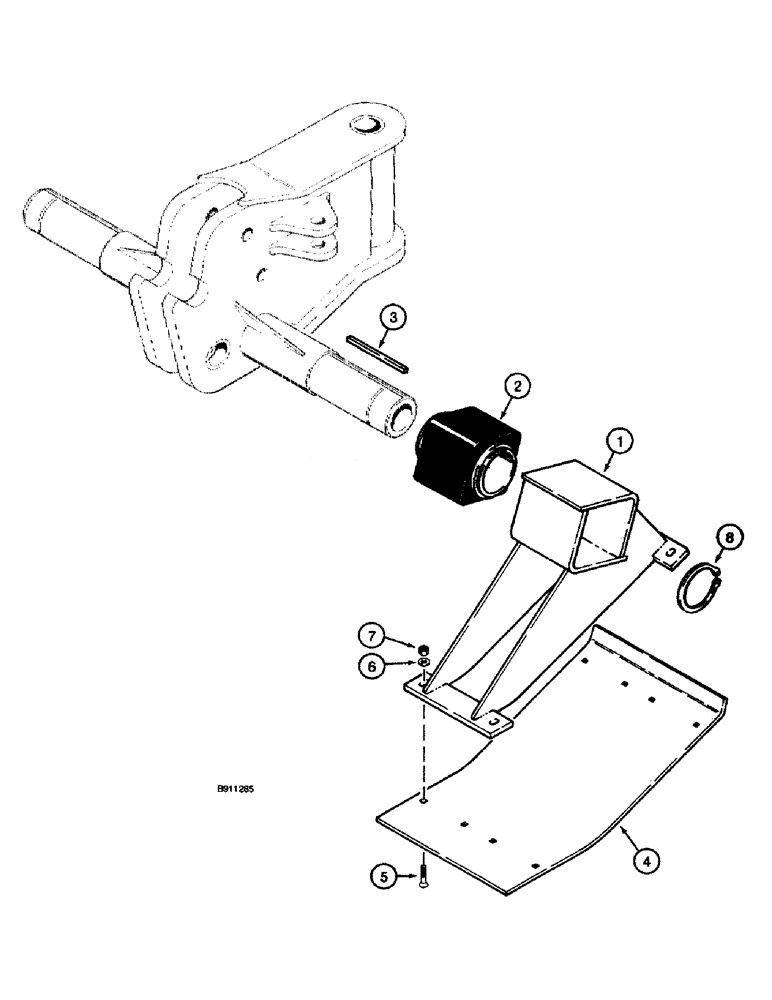

Запчасти Case 660 (9-112) - PLOW SKID SHOES (09) - CHASSIS/ATTACHMENTS

H674485

SHOE (ASSY)

SHOE ASSEMBLY - skid, Includes: Ref. 1 and 2

2шт.

1

H674486

SHOE (ASSY)

SHOE - skid

1шт.

2

H230862

SHOCK ABSORBER

MOUNT - rubber, skid shoe

1шт.

3

H79368

KEY

- square, 3/8 x 5-3/8 inch

2шт.

4

H437946

LARGE PLATE

PLATE - skid shoe, 12 inch wide

2шт.

5

118-141

PLOW BOLT,3/8"-16 x 1 1/2", G5

BOLT - plow, 3/8 NC x 1-1/2 inch

4шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

7

231-5146

FLANGE NUT,3/8"-16

4шт.

8

103-11300

SNAP RING,#300, Ext

Ring, Snap, , Skid shoe #300, Ext

2шт.
