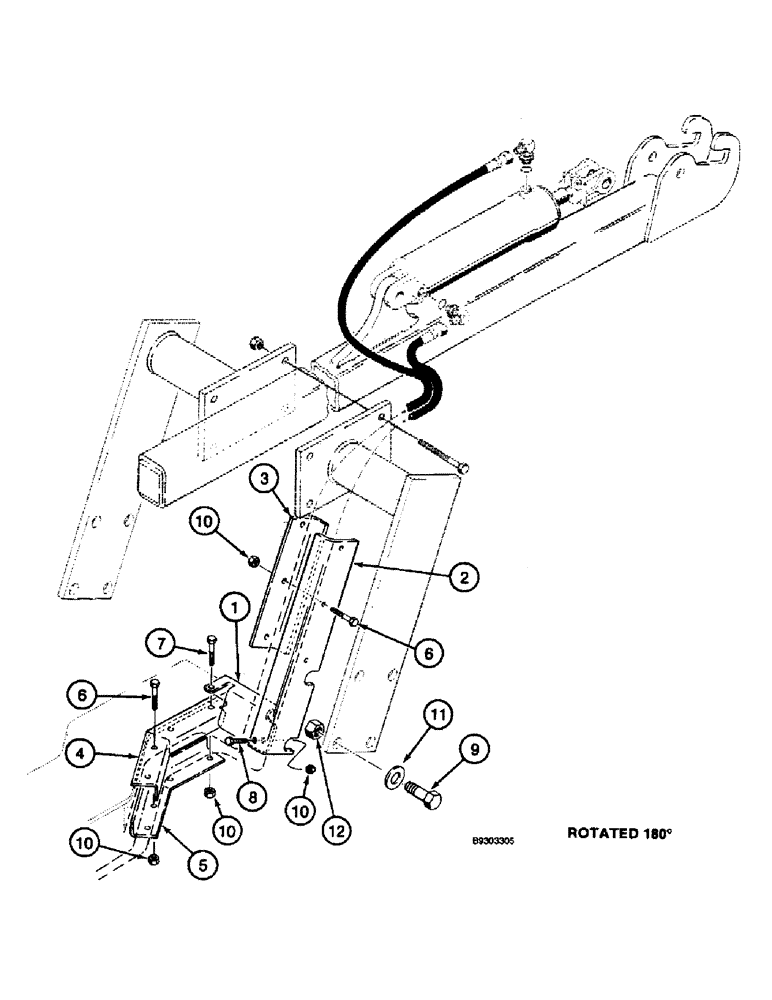

Запчасти Case 660 (9-087E) - HYDRAULIC CRUMBER, HOSE GUARD AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

105565A1

ANGLE

- hose guard, intermediate

1шт.

2

105566A1

ANGLE

- hose guard, outer

1шт.

3

105568A1

ANGLE

- hose guard, inner

1шт.

4

105556A1

ANGLE

- hose guard, upper

1шт.

5

105564A1

ANGLE

- hose guard, lower

1шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

6шт.

7

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

10

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

2шт.

11

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

2шт.

12

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.
