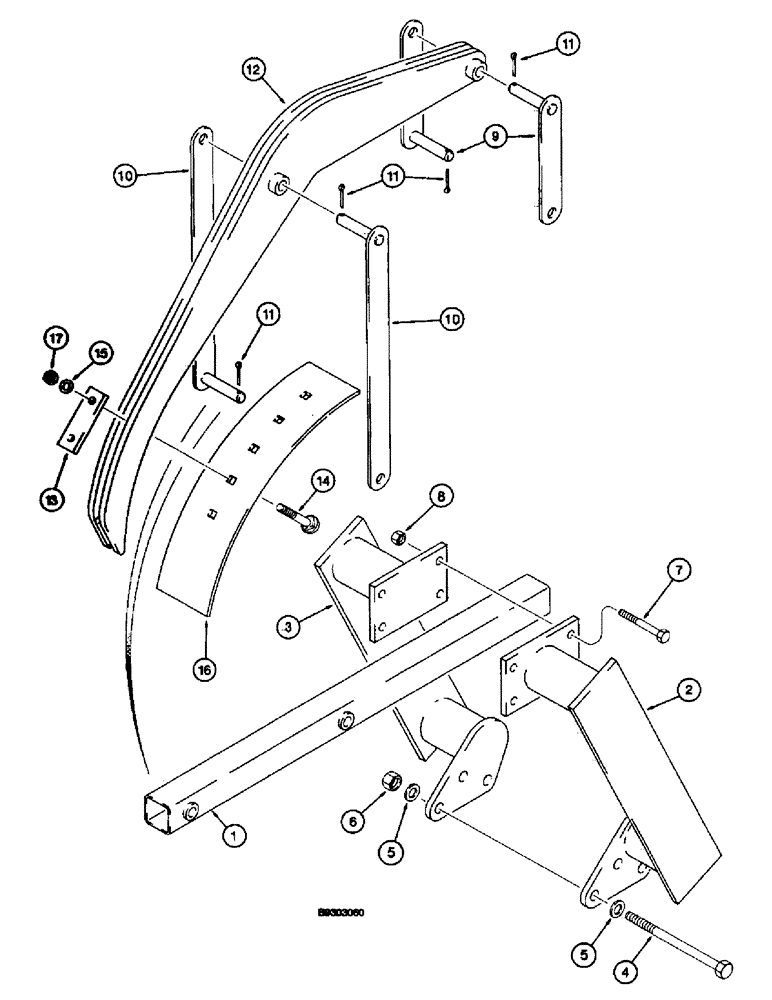

Запчасти Case 660 (9-087A) - CRUMBER, DIGGING CHAIN GUARD, AND MOUNTING, FOR INTEGRAL QUAD TRENCHER (09) - CHASSIS/ATTACHMENTS

1

113586A1

TUBE,970 mm Length

BOOM - crumber, 4 foot

1шт.

1a

120625A1

KIT

- digging chain guard, 4 foot, units without crumber, includes (1) NSS restraint tube, (2) H438909 and (1) H438910 Danger decals on Fig. 9-122 and 7-47390 installation instructions.

1шт.

2

117780A1

SUPPORT

BRACKET - crumber mounting, sprocket boom, left-hand

1шт.

2

117777A1

ANCHOR

BRACKET - crumber mounting, rock boom, left-hand, not shown

1шт.

3

117779A1

SUPPORT

BRACKET - crumber mounting, sprocket boom, right-hand

1шт.

3

117778A1

ANCHOR

BRACKET - crumber mounting, rock boom, right-hand

1шт.

4

426-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex, 3/4 NC x 7 inch, grade 8

3шт.

5

H426817

WASHER

- flat, special, hardened

6шт.

6

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

3шт.

7

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

8

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

9

113587A1

LINK

- boom to crumber, short

2шт.

10

H659151

LINK

- boom to crumber, long

2шт.

11

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

4шт.

12

H673071

ARM

BRACKET - crumber blade

1шт.

13

H309450

SPACER

PLATE - spacer, Serial Range: bracket-blade

1шт.

14

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT - carriage, 1/2 NC x 4 inch, grade 2

2шт.

15

H274894

WASHER

- flat, special

2шт.

16

H127480

BLADE

- crumber, 6 inch wide, if used

1шт.

16

H60087

BLADE

- crumber, 8 inch wide, if used

1шт.

16

H60103

BLADE

- crumber, 10 inch wide, if used

1шт.

16

H60129

BLADE

- crumber, 11 inch wide, if used

1шт.

16

H60145

BLADE

- crumber, 13 inch wide, if used

1шт.

16

H60160

BLADE

- crumber, 16 inch wide, if used

1шт.

16

H60186

BLADE

- crumber, 18 inch wide, if used

1шт.

17

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.
