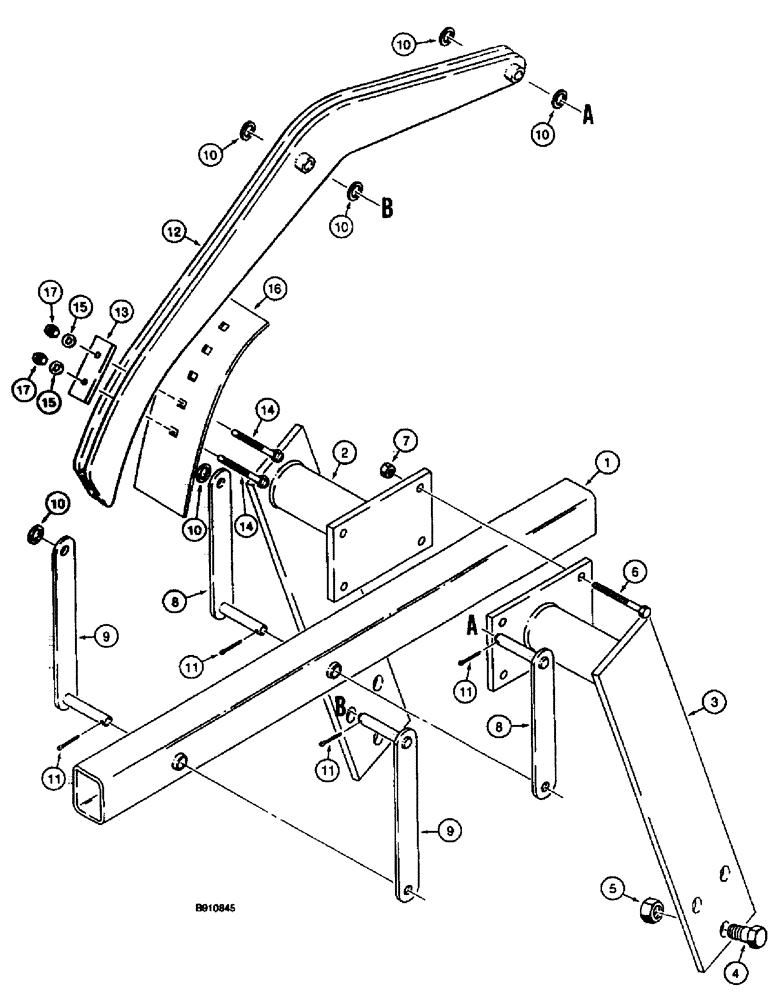

Запчасти Case 660 (9-086) - CRUMBER, DIGGING CHAIN GUARD, AND MOUNTING, FOR ALL TRENCHERS EXCEPT INTEGRAL QUAD (09) - CHASSIS/ATTACHMENTS

1

H672169

TUBE,190, 398 mm L

BOOM - crumber, 4 foot long, if used

1шт.

1

H672170

TUBE,1598 mm L

BOOM - crumber, 5 foot long, if used

1шт.

1

H672171

TUBE,1928 mm L

BOOM - crumber, 6 foot long, if used

1шт.

1

H434220

TUBE,1268 mm L

GUARD - digging chain, 4 foot long, units without crumber, if used

1шт.

1

H434221

TUBE,1598 mm L

GUARD - digging chain, 5 foot long, units without crumber, if used

1шт.

1

H434222

TUBE,1928 mm L

GUARD - digging chain, 6 foot long, units without crumber, if used

1шт.

2

H672872

PLATE

BRACKET - crumber mounting, left-hand

1шт.

3

H672871

PLATE

BRACKET - crumber mounting, right-hand

1шт.

4

413-1632

BOLT,Hex, 1" - 8 x 2", Gr 5

- hex, 1 NC x 2 inch

6шт.

5

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

6шт.

6

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

H673072

LINK

- boom to crumber, short

2шт.

9

H672721

LINK

- boom to crumber, long

2шт.

10

495-11081

WASHER,3/4", SAE

6шт.

11

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

4шт.

12

H673071

ARM

BRACKET - crumber blade

1шт.

13

H309450

SPACER

PLATE - spacer, Serial Range: bracket-blade

1шт.

14

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT - carriage, 1/2 NC x 4 inch, grade 2

2шт.

15

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

16

H127480

BLADE

- crumber, 6 inch wide, if used

1шт.

16

H60087

BLADE

- crumber, 8 inch wide, if used

1шт.

16

H60103

BLADE

- crumber, 10 inch wide, if used

1шт.

16

H60129

BLADE

- crumber, 11 inch wide, if used

1шт.

16

H60145

BLADE

- crumber, 13 inch wide, if used

1шт.

16

H60160

BLADE

- crumber, 16 inch wide, if used

1шт.

16

H60186

BLADE

- crumber, 18 inch wide, if used

1шт.

17

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.
