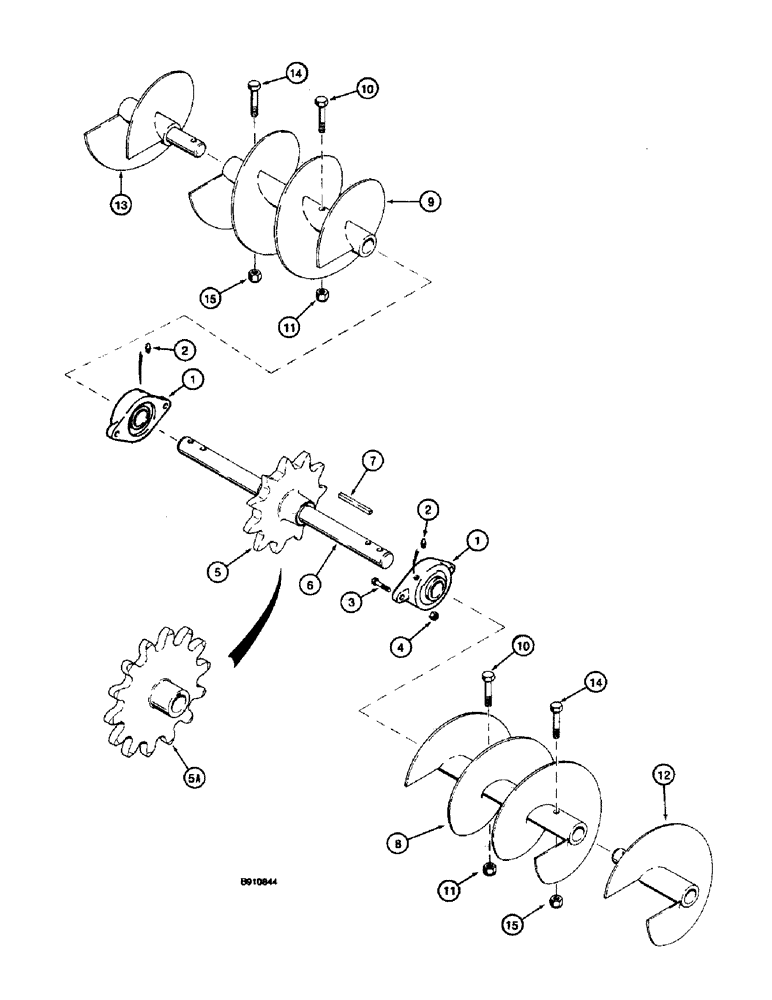

Запчасти Case 660 (9-084) - AUGER AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H759120

BEARING

- auger, Includes: Ref. 2

2шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, straight

1шт.

3

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

4шт.

4

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

5

H434598

DRIVE SPROCKET

SPROCKET - auger drive, 11 teeth, used with 110,000 pound chainline

1шт.

5a

H675071

SPROCKET ASSY.

SPROCKET - auger drive, 14 teeth, used with 75,000 pound chainline

1шт.

6

H434597

SHAFT

- auger

1шт.

7

H433528

KEY

- shaft

1шт.

8

H672056

AUGER

- spoil removal, right-hand

1шт.

9

H672057

AUGER

- spoil removal, left-hand

1шт.

10

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

11

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

12

H672396

AUGER

- spoil removal, right-hand, extension, used with Ref. 8, if used

1шт.

13

H672395

AUGER

- spoil removal, left-hand, extension, used with Ref. 9, if used

1шт.

14

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch, if used

2шт.

15

232-41112

NUT,3/4"-10, GC

NUT, LOCK, , If used 3/4"-10, GC

2шт.
