Запчасти Case 660 (9-078) - STANDARD DIGGING TEETH (09) - CHASSIS/ATTACHMENTS

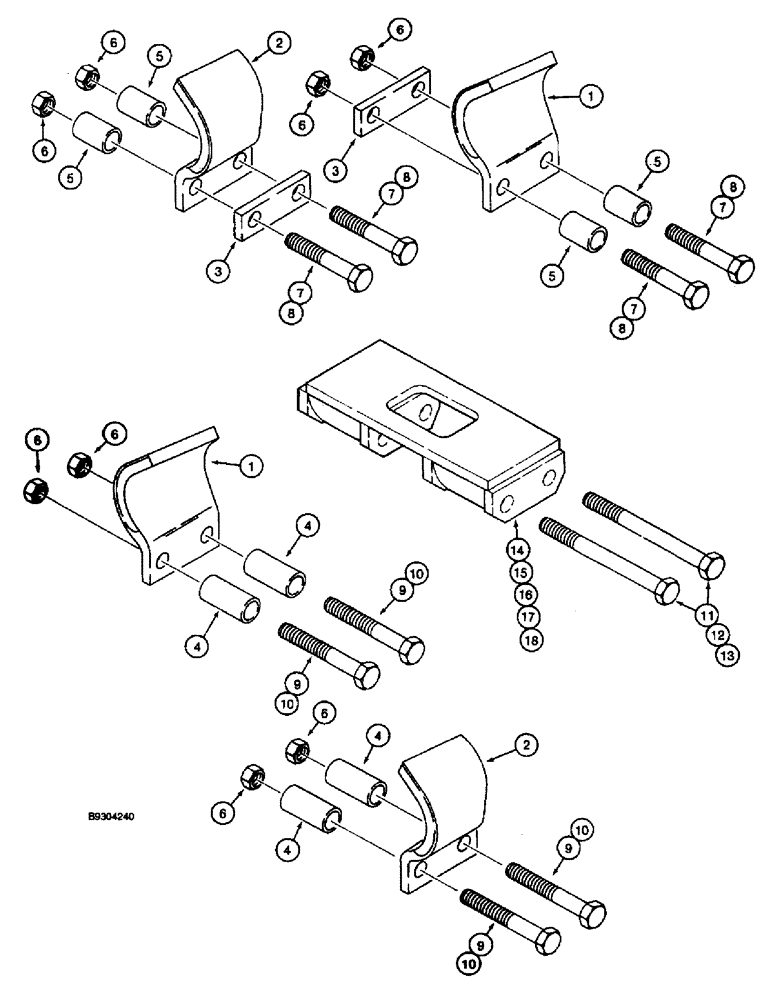

Схема запчастей Case 660 - (9-078) - STANDARD DIGGING TEETH (09) - CHASSIS/ATTACHMENTS
9
7
8
6
5
6
11
1
2
12
14
9
6
3
10
7
4
13
7
6
18
16
3
6
7
5
2
4
10
10
1
4
4
15
6
8
8
6
9
6
17
6
10
6
5
9

№

Артикул

Название

Примечание

Количество

1

H251389

TOOTH

- digging, left-hand

1шт.

2

H251371

TOOTH

- digging, right-hand

1шт.

3

H138990

SPACER

- flat, 5/16 x 1-1/8 x 3-1/2 inch, used with 70,000 pound chainline

1шт.

3

H251504

SPACER

- tooth, flat, 1/2 x 1-1/4 x 3-1/2 inch, used with 110,000 pound chainline

1шт.

4

102259A1

SPACER

- tubular, 1 x 1-29/32 inch, used with 70,000 pound chainline

1шт.

4

H251496

SPACER

- tooth, tubular, 1 x 2-11/32 inch, used with 110,000 pound chainline

1шт.

5

102260A1

SPACER

- tubular, 1 x 1-7/32 inch, used with 75,000 pound chainline

1шт.

5

H213496

SPACER

- tooth, tubular, 1 x 1-15/32 inch, used with 110,000 pound chainline

1шт.

6

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

7

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

used with 75,000 pound chainline Hex, 5/8"-11 x 3", G5

1шт.

8

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, used with 110,000 pound chainline

1шт.

9

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Used with 75,000 pound chainline and with optional brackets Hex, 5/8"-11 x 3 1/2", G5

1шт.

10

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Used with 110,000 pound chainline and with optional brackets for 75,000 pound chainline Hex, 5/8"-11 x 4 1/2", G5

1шт.

11

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch, used with 75,000 pound chainline and with optional brackets

1шт.

12

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch, Used with 75,000 pound chainline and with optional brackets

1шт.

13

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- hex, 5/8 NC x 7-1/2 inch, used with 75,000 pound chainline and with optional brackets

1шт.

14

122075A1

BRACKET

- 10 inch tooth mounting, used with 75,000 pound chainline

1шт.

15

122076A1

BRACKET

- 12 inch tooth mounting, used with 75,000 pound chainline

1шт.

16

122077A1

BRACKET

- 14 inch tooth mounting, used with 75,000 pound chainline

1шт.

17

122078A1

BRACKET

- 16 inch tooth mounting, used with 75,000 pound chainline

1шт.

18

122079A1

BRACKET

- 18 inch tooth mounting, used with 75,000 pound chainline

1шт.

Выбрано товаров: 21
