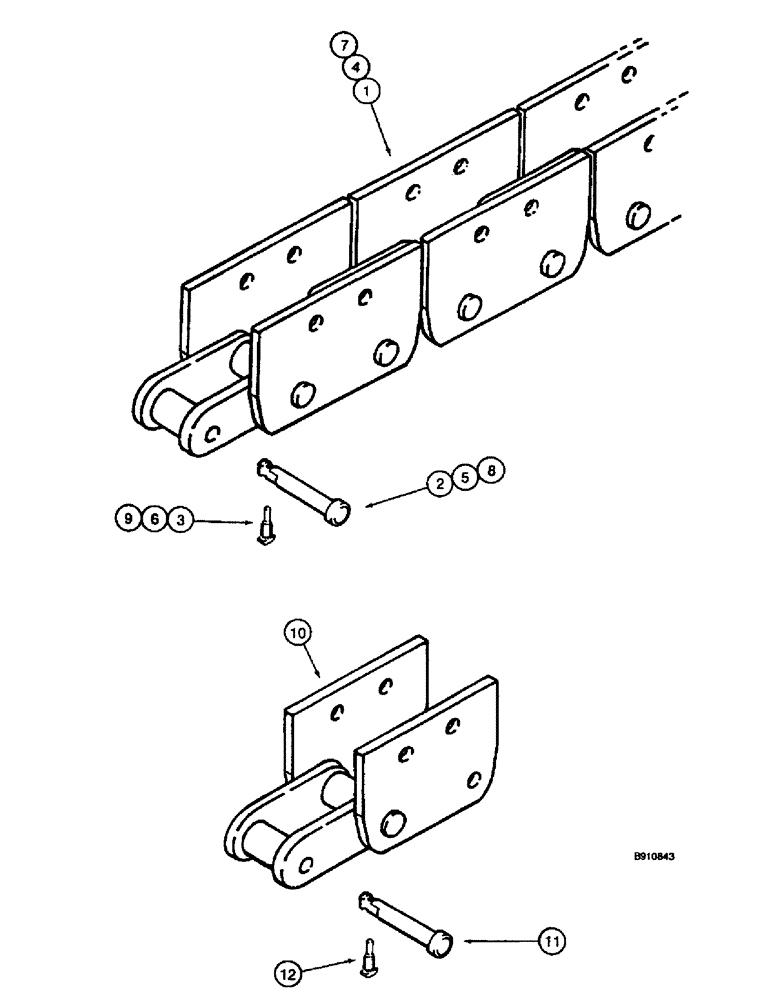

Запчасти Case 660 (9-076) - ANTI-BACKFLEX DIGGING CHAINS, 110,000 AND 150,000 POUND CHAINLINE, FOR 4 FOOT DEPTH BOOM (09) - CHASSIS/ATTACHMENTS

102547A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, 60 pitches, 150,000 pound

1шт.

H644203

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 54 pitches, 110,000 pound

1шт.

102548A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, 8 pitches, 150,000 pound

1шт.

H672444

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 8 pitches, 110,000 pound

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 60 pitch, included with 102547A1 chain assembly

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 54 pitch, included with H644203 chain assembly

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 8 pitch, included with 102548A1 chain assembly

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 8 pitch, included with H672444 chain assembly

1шт.

2

H227868

PIN

- connector, special, used with 110,000 pound chainline

1шт.

2

102502A1

PIN

- connector, used with 150,000 pound chainline

1шт.

3

H234195

AXLE PIN

PIN - lock, chain, used with 110,000 pound chainline

1шт.

3

102503A1

LINCH PIN

PIN - pin retaining, chain, used with 150,000 pound chainline

1шт.

For 5 Foot Depth Boom

1шт.

H644203

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 54 pitches

1шт.

H672444

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 8 pitches

2шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 54 pitch, included with H644203 chain assembly, for 5 foot depth boom

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 8 pitch, included with H672444 chain assembly, for 5 foot depth boom

1шт.

5

H227868

PIN

- connector, special, for 5 foot depth boom

1шт.

6

H234195

AXLE PIN

PIN - lock, chain, for 5 foot depth boom

1шт.

For 6 Foot Depth Boom

1шт.

H644203

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 54 pitches

1шт.

H672444

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 8 pitches

3шт.

7

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 54 pitch, included with H644203 chain assembly, for 6 foot depth boom

1шт.

7

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 8 pitch, included with H672444 chain assembly, for 6 foot depth boom

1шт.

8

H227868

PIN

- connector, special, for 6 foot depth boom

1шт.

9

H234195

AXLE PIN

PIN - lock, chain, for 6 foot depth boom

1шт.

Chain Repair Section

1шт.

102549A1

CHAIN (AG)

CHAIN ASSEMBLY - repair section, anti-backflex, 2 pitches, 150,000 pound

1шт.

H644229

CHAIN (AG)

CHAIN ASSEMBLY - repair section, anti-backflex, 2 pitches, 110,000 pound

1шт.

10

NSS

NOT SOLD SEPARAT

CHAIN - repair section, anti-backflex, 2 pitch, 110,000 and 150,000 pound chainline

1шт.

11

H227868

PIN

- connector, special, used with 110,000 pound chainline, chain repair section

1шт.

11

102502A1

PIN

- connector, used with 150,000 pound chainline, chain repair section

1шт.

12

H234195

AXLE PIN

PIN - lock, chain, used with 110,000 pound chainline, repair section

1шт.

12

102503A1

LINCH PIN

PIN - pin retaining, chain, used with 150,000 pound chainline, repair section

1шт.
