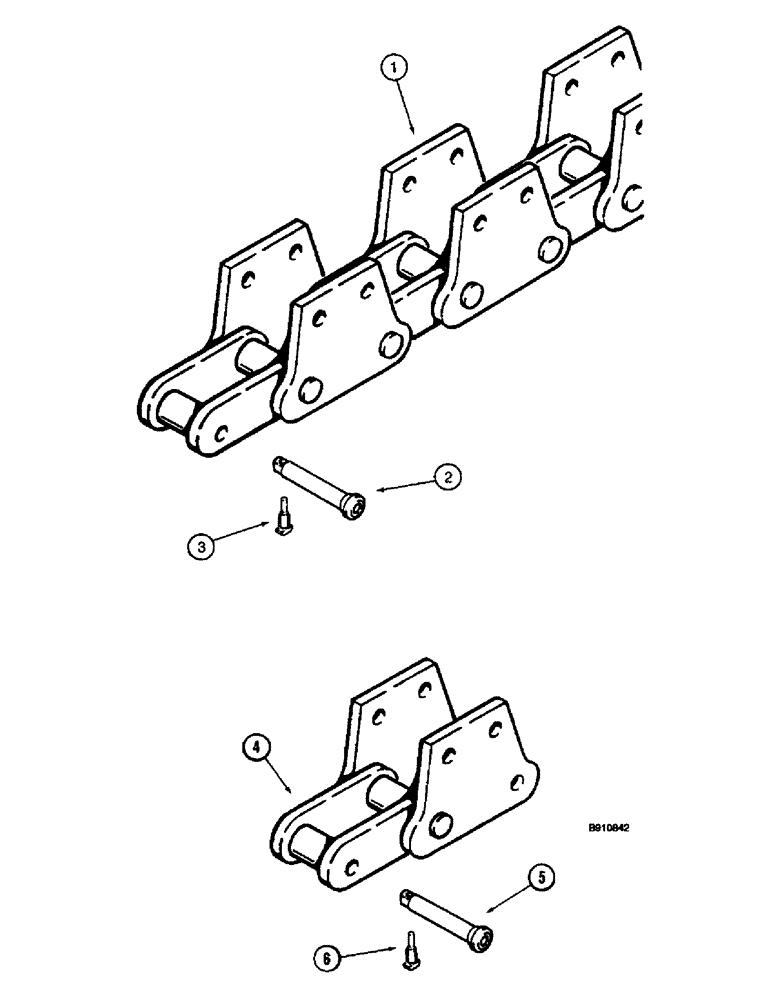

Запчасти Case 660 (9-074) - STANDARD DIGGING CHAINS, 110,000 POUND CHAINLINE, FOR 4 FOOT DIGGING DEPTH BOOM (09) - CHASSIS/ATTACHMENTS

H588400

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 54 pitches

1шт.

H672439

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 8 pitches, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 54 pitch, included with H588400 chain assembly

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 8 pitch, included with H672439 chain assembly

1шт.

2

H227868

PIN

- connector, special

1шт.

3

H234195

AXLE PIN

PIN - lock, chain

1шт.

For 5 Foot Digging Depth Boom

1шт.

H588400

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 54 pitches, for 5 foot digging depth boom

1шт.

H672439

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 8 pitches, for 5 foot digging depth boom, Includes: Ref. 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 54 pitch, included with H588400 chain assembly, for 5 foot digging depth boom

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 8 pitch, included with H672439 chain assembly, for 5 foot digging depth boom

1шт.

5

H227868

PIN

- connector, special, for 5 foot digging depth boom

1шт.

6

H234195

AXLE PIN

PIN - lock, chain, for 5 foot digging depth boom

1шт.

For 6 Foot Digging Depth Boom

1шт.

H588400

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 54 pitches, for 6 foot digging depth boom

1шт.

H672439

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 8 pitches, for 6 foot digging depth boom, Includes: Ref. 7 - 9

3шт.

7

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 54 pitch, included with H588400 chain assembly, for 6 foot digging depth boom

1шт.

7

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 8 pitch, included with H672439 chain assembly, for 6 foot digging depth boom

1шт.

8

H227868

PIN

- connector, special, for 6 foot digging depth boom

1шт.

9

H234195

AXLE PIN

PIN - lock, chain for 6 foot digging depth boom

1шт.

ref

Part No.

Chain Repair Section

1шт.

H572982

LINK

CHAIN ASSEMBLY - repair section, 2 pitches, chain repair section, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

CHAIN - repair section, 2 pitch, chain repair section

1шт.

11

H227868

PIN

- connector, special, chain repair section

1шт.

12

H234195

AXLE PIN

PIN - lock, chain,chain repair section

1шт.
