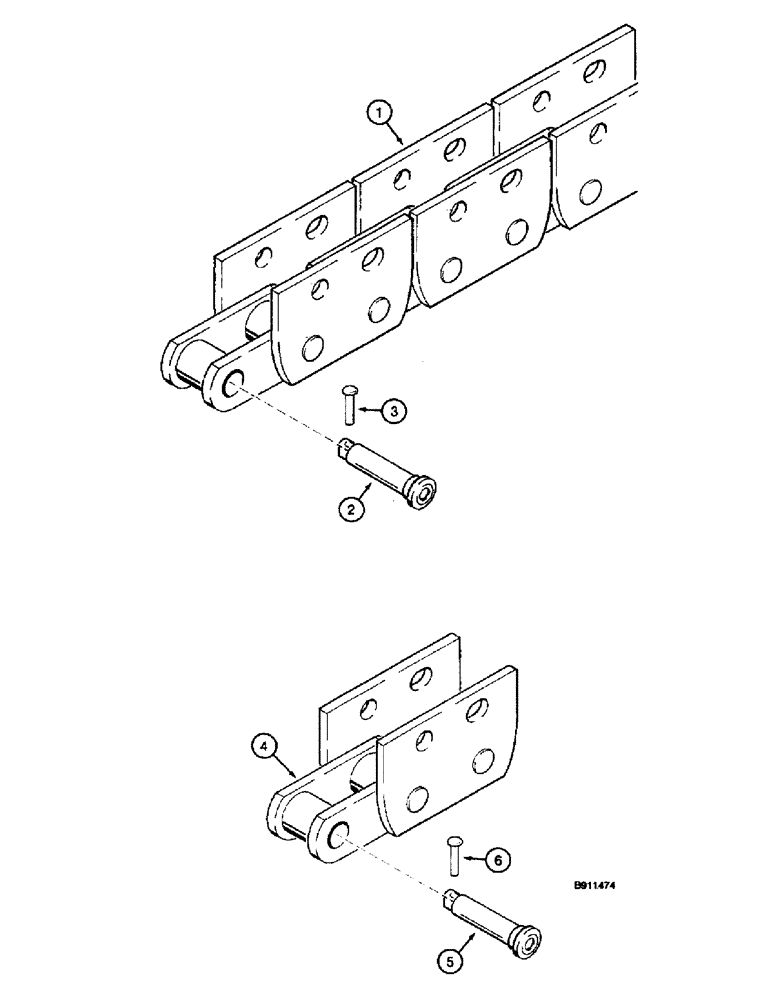

Запчасти Case 660 (9-072) - STANDARD DIGGING CHAINS, 75,000 POUND CHAINLINE, FOR 4 FOOT DIGGING DEPTH BOOM (09) - CHASSIS/ATTACHMENTS

102045A1

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 74 pitches, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 74 pitches, included with 102045A1 chain assembly

1шт.

2

102501A1

PIN

- connector

1шт.

3

H297655

AXLE PIN

PIN - pin retaining, chain

1шт.

102045A1

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 74 pitches

1шт.

102046A1

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 10 pitches, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 74pitches, included with 102045A1 chain assembly, for 5 foot digging depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 10 pitches, included with 102046A1 chain assembly, for 5 foot digging depth boom

1шт.

2

102501A1

PIN

- connector,, for 5 foot digging depth boom

1шт.

3

H297655

AXLE PIN

PIN - pin retaining, chain, for 5 foot digging depth boom

1шт.

102045A1

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 74 pitches, for 6 foot digging depth boom

1шт.

102046A1

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 10 pitches, for 6 foot digging depth boom, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 74 pitches, included with 102045A1 chain assembly, for 6 foot digging depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 10 pitches, included with 102046A1 chain assembly, for 6 foot digging depth boom

1шт.

2

102501A1

PIN

- connector, for 6 foot digging depth boom

1шт.

3

H297655

AXLE PIN

PIN - pin retaining, chain, for 6 foot digging depth boom

1шт.

Chain Repair Section

1шт.

102047A1

CHAIN (CE)

CHAIN ASSEMBLY - repair section, 2 pitches, chain repair section, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - repair section, 2 pitches, chain repair section

1шт.

5

102501A1

PIN

- connector, chain repair section

2шт.

6

H297655

AXLE PIN

PIN - pin retaining, chain, chain repair section

2шт.

Chain For Service

1шт.

116360A1

CHAIN (AG)

CHAIN ASSEMBLY - service, 48 pitches, chain for service, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - repair section, 48 pitches, chain for service

1шт.

5

102501A1

PIN

- connector, chain for service

2шт.

6

H297655

AXLE PIN

PIN - pin retaining, chain, chain for service

2шт.
