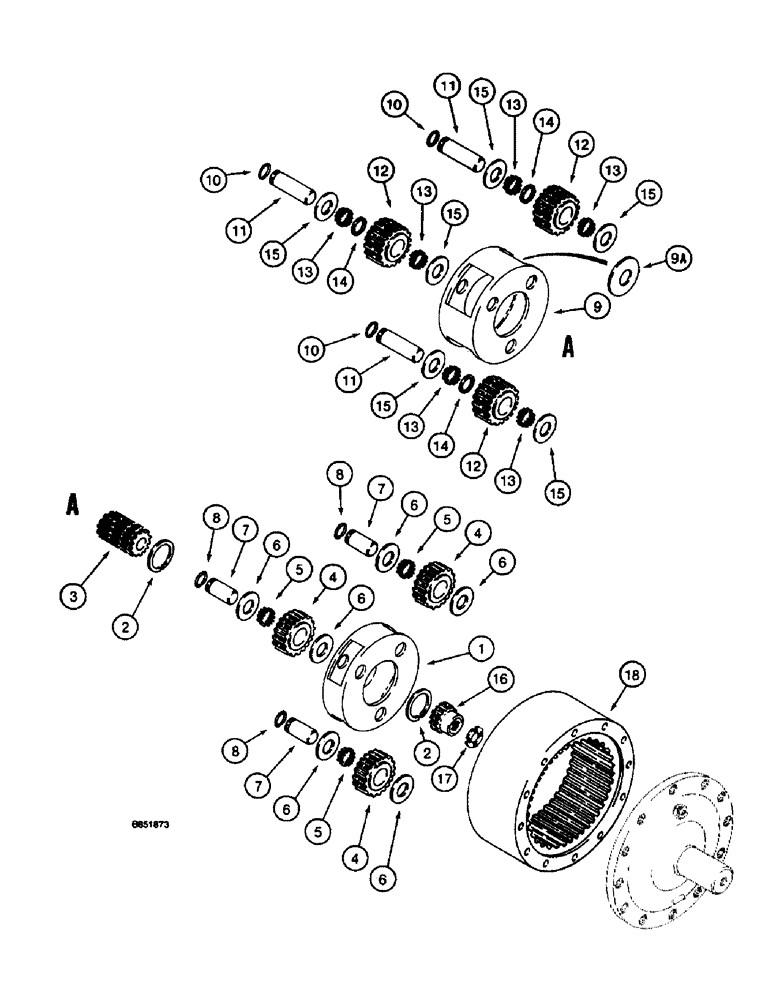

Запчасти Case 660 (9-070) - TRENCHER DRIVE PLANETARY, FOR ALL TRENCHERS EXCEPT INTEGRAL QUAD (09) - CHASSIS/ATTACHMENTS

H674394

GEAR WHEEL

PLANETARY ASSEMBLY - trencher drive, Includes: Ref. 1 - 18

1шт.

See Fig. 9-48 for planetary cover and mounting.

1шт.

N13354

CARRIER

ASSEMBLY - planetary, primary, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - planetary, primary

1шт.

2

N13361

RING, SNAP

RING - snap, sun gear

2шт.

3

N13364

GEAR

- sun, primary planetary

1шт.

4

N13363

GEAR

- planetary

3шт.

5

L33375

ROLLER

BEARING - needle, planetary gear

48шт.

6

N13359

WASHER

- thrust, planetary gear

6шт.

7

N13362

SHAFT

- pinion

3шт.

8

A37643

SNAP RING,#102, .962", Ext

RING - snap, pinion shaft

3шт.

N13353

CARRIER

ASSEMBLY - planetary, secondary, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER - planetary, secondary

1шт.

9

N13731

WASHER

- thrust, special, carrier

1шт.

10

A37643

SNAP RING,#102, .962", Ext

RING - snap, pinion shaft

3шт.

11

N13357

SHAFT

- pinion

3шт.

12

N13358

GEAR

- planetary

3шт.

13

A55854

PIN,6.35mm OD x 19.05mm L

BEARING - needle, planetary gear

96шт.

14

N13360

SEPARATOR

- needle bearing

3шт.

15

N13359

WASHER

- thrust, planetary gear

6шт.

16

H438575

SUN GEAR

GEAR - sun, planetary, planetary

1шт.

17

N6363

WASHER

- thrust, sun gear

1шт.

18

N13355

GEAR

- ring, planetary, planetary

1шт.
