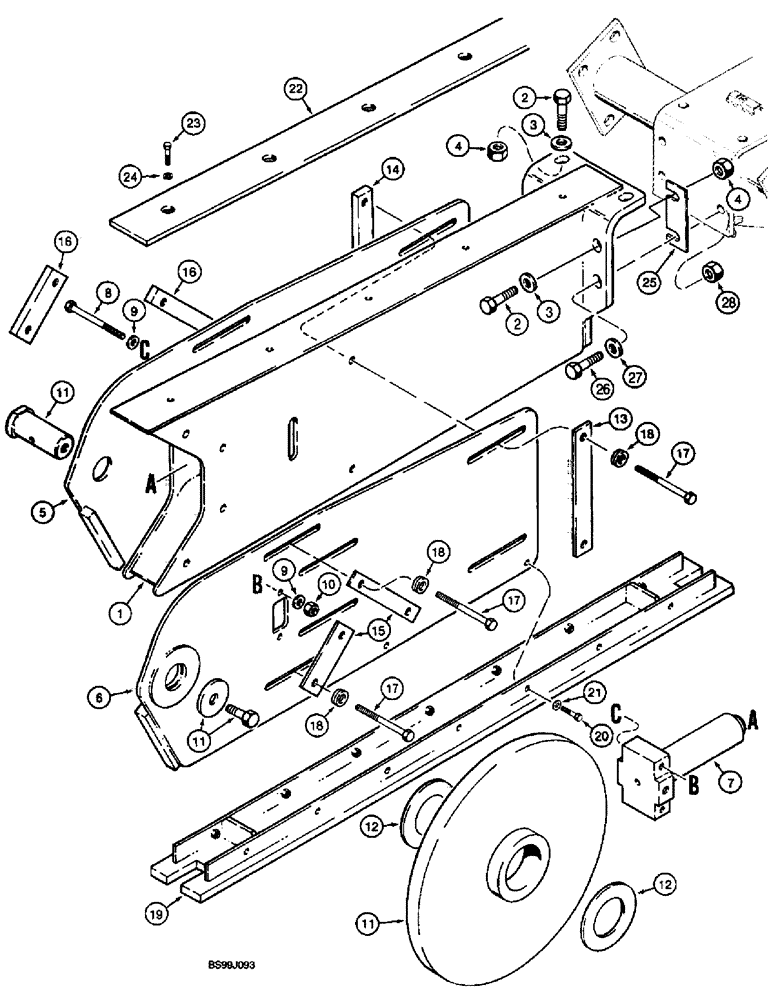

Запчасти Case 660 (9-064) - TRENCHER BOOMS AND MOUNTING, ROCK BOOM, 5 FOOT, 110,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H672819
BOOM
- trencher, rock, 5 foot
1шт.
2
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
Hex, 3/4"-10 x 2-1/2", G5
4шт.
3
H426817
WASHER
- flat, special, hardened
4шт.
4
232-41112
NUT,3/4"-10, GC
NUT, LOCK, 3/4"-10, GC
4шт.
5
H672976
PLATE
- rock boom end, left-hand
1шт.
6
H672970
PLATE
- rock boom end, right-hand
1шт.
7
H672751
CYLINDER
ADJUSTER ASSEMBLY - chain, rock boom, parts list Fig. 9-68
1шт.
8
413-880
BOLT,Hex, 1/2" - 13 x 5", Gr 5
- hex, 1/2 NC x 5 inch
2шт.
9
H274894
WASHER
- flat, special
4шт.
10
232-4118
NUT,1/2"-13, GC
NUT, LOCK, 1/2"-13, GC
2шт.
11
H672962
ROLLER
ASSEMBLY - rock boom end, parts list Fig. 9-66
1шт.
12
H435229
WASHER,80.2mm ID x 140mm OD x 1.58mm Thk
- flat, special, boom end roller
2шт.
13
H434510
BAR
- boom end plate retaining, long, right-hand
1шт.
14
H434511
BAR
- boom end plate retaining, long, tapped, left-hand
1шт.
15
H434671
BAR
- boom end plate retaining, short, right-hand
2шт.
16
H434555
BAR
- boom end plate retaining, short, tapped, left-hand
2шт.
17
426-1088
BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8
- hex, 5/8 NC x 5-1/2 inch, grade 8
6шт.
18
H434670
LOCK WASHER
- disc locking, special
6шт.
19
H672820
CHANNEL
- wear pad, lower
1шт.
20
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
10шт.
21
496-21041
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32", hardened
10шт.
22
H434850
BAR
PAD - wear, upper
1шт.
23
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
5шт.
24
492-11038
LOCK WASHER,3/8"
5шт.
25
H437275
SHIM,1.50mm Thk
Trencher boom to boom mounting bracket 1.50mm Thk
1шт.
26
426-1640
BOLT,Hex, 1" - 8 x 2-1/2", Gr 8
- hex, 1 NC x 2-1/2 inch, grade 8
2шт.
27
D36505
WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk
- flat, special, 1-1/16 x 1-7/8 x 9/64 inch
2шт.
28
232-41116
LOCK NUT,1"-8, GC
NUT, LOCK, 1"-8, GC
2шт.
Выбрано товаров: 28
