Запчасти Case 660 (2-14) - FRONT GEAR COVER, 4-390 ENGINE (02) - ENGINE

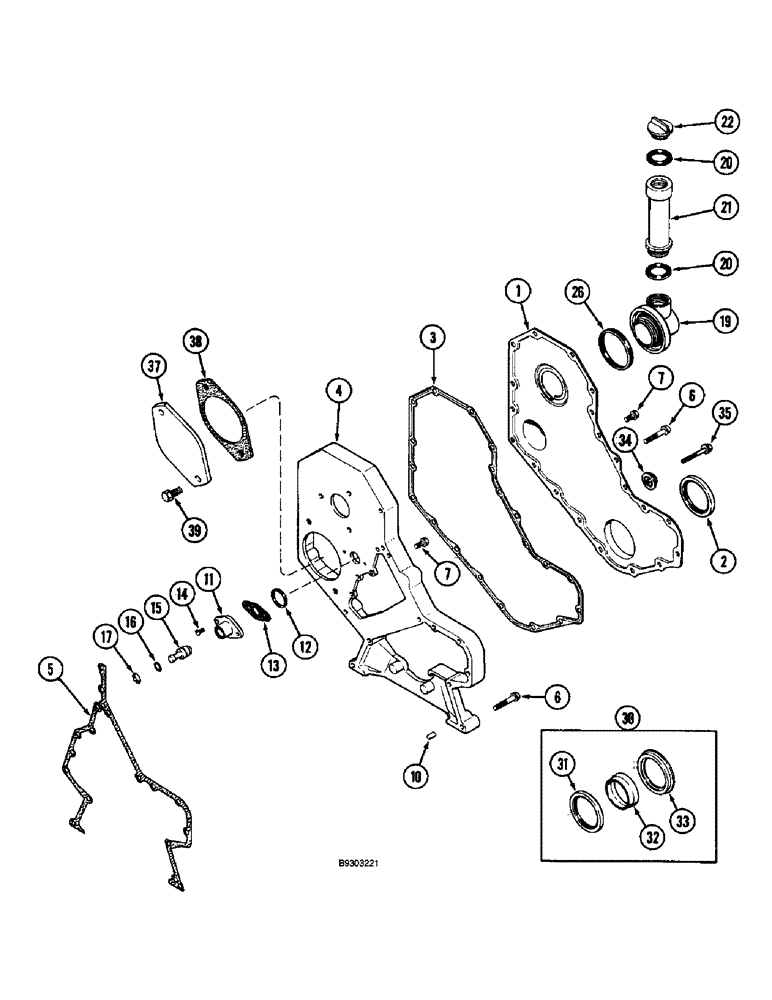

Схема запчастей Case 660 - (2-14) - FRONT GEAR COVER, 4-390 ENGINE (02) - ENGINE
11
7
20
38
37
20
17
14
7
35
6
33
31
5
34
3
16
15
1
22
21
6
39
19
10
13
2
26
4
30
12
32

Артикул

Название

Примечание

Количество

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order Ref. 30, J904353 kit

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover

1шт.

4

J920518

HOUSING

- timing gear

1шт.

5

J916131

GASKET

- gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

11

J919683

HOUSING

- timing pin

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

13

J905595

GASKET

- timing pin housing

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

16

J913994

O-RING

- sealing

1шт.

17

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

19

J911679

HOUSING

CONNECTOR - engine oil fill

1шт.

20

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

2шт.

21

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

- oil filler

1шт.

22

J901895

CAP

- oil filler

1шт.

23

J903463

PLUG,M63 x 5

- front access

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

30

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes: Ref 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

- bolt

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.

37

J914868

COVER

PLATE - access cover, flat

1шт.

38

J919601

GASKET

- access cover plate

1шт.

39

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

Выбрано товаров: 30
