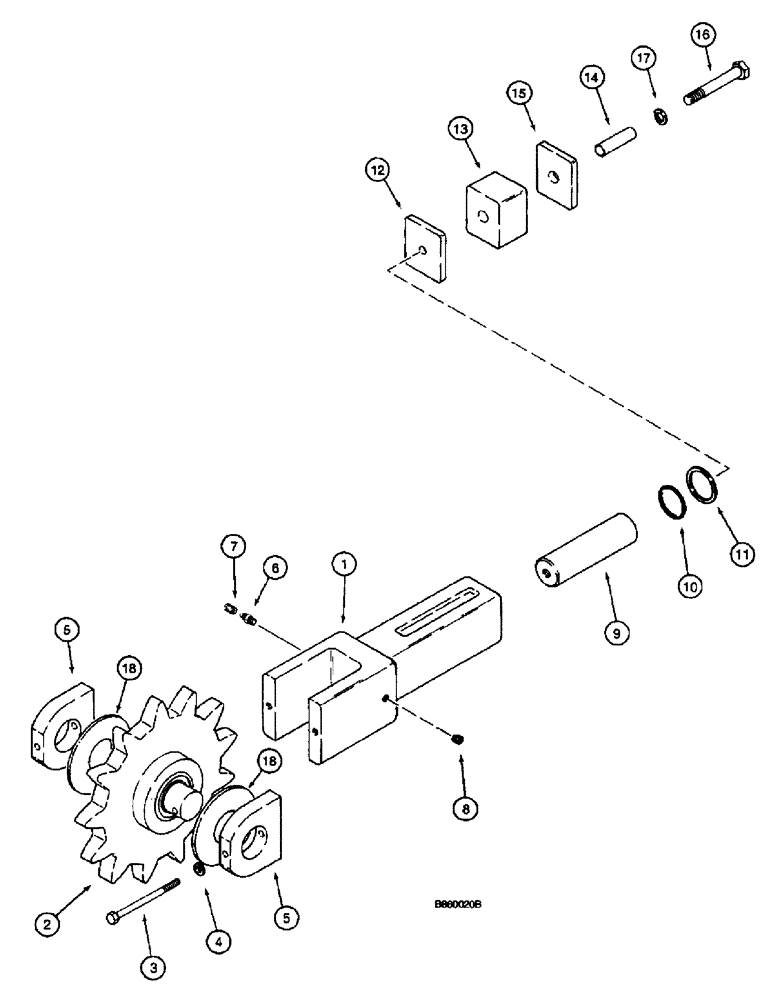

Запчасти Case 660 (9-054) - TRENCHER BOOM END, FOR STANDARD TRENCHER BOOM AND FOR QUAD WITH BOLT-ON TRENCHER FRAME (09) - CHASSIS/ATTACHMENTS

1

H433863

END

BOOM - trencher, end

1шт.

See Figs. 9-58 - 9-64 for trencher rock booms.

1шт.

2

H433851

DRIVE SPROCKET

SPROCKET - trencher boom end, 13 teeth, see Fig. 9-56, Ref. 7 - 13, for sprocket and related parts

1шт.

3

426-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

- hex, 1/2 NC x 6 inch, grade 8

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

H433404

CAP

- trencher boom end

2шт.

6

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

CAP - grease fitting, order 219-66 grease fitting

1шт.

8

H114728

PLUG

- hex socket, 3/8 inch PT, bleed

1шт.

9

H114512

PLUNGER

ROD - plunger

1шт.

10

238-6332

O-RING,0.21" Thk x 2.35" ID, -332, Cl 6, 90 Duro

1шт.

11

H745711

WASHER

- backup, O-ring

1шт.

12

H433391

LARGE PLATE

RETAINER - boom end cushion, inner

1шт.

13

H433392

SHOCK ABSORBER

CUSHION - boom end

1шт.

14

H433509

TUBE,19.86 mm ID x 25.4 mm OD x 76 mm L

SLEEVE - boom end cushion

1шт.

15

H433508

LARGE PLATE

RETAINER - boom end cushion, outer

1шт.

16

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

18

H433867

WASHER

SPACER - idler sprocket

2шт.
