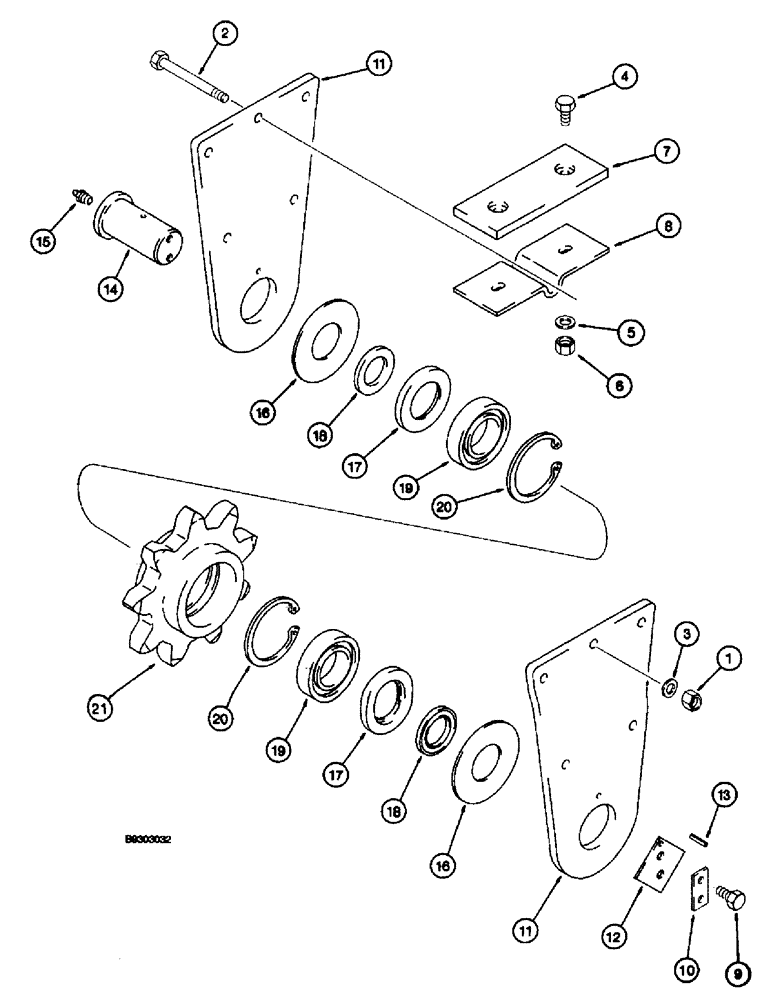

Запчасти Case 660 (9-053A) - INTEGRAL QUAD IDLER SPROCKET AND MOUNTING, STANDARD BOOM (09) - CHASSIS/ATTACHMENTS

1

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

5шт.

2

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

5шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

5шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

6

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

7

H439388

STRIP

PAD - wear, trencher boom

1шт.

8

H439387

GUARD

PLATE - wear pad mounting

1шт.

9

414-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex, 3/8 NF x 1 inch

2шт.

10

113100A1

STRAP

- bolt lock

1шт.

11

113109A1

LARGE PLATE

PLATE - idler sprocket

2шт.

12

113099A1

LARGE PLATE

RETAINER - idler sprocket plate

2-4шт.

13

37-148

DOWEL,1/4" x 1/2"

PIN - dowel, 3/8 x 3/4 inch, hardened

1шт.

14

113105A1

PIN

- sprocket

1шт.

15

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch

1шт.

16

113230A1

WASHER

- wear, special

2шт.

17

113101A1

SEAL

HOUSING - seal

2шт.

18

D127866

SEAL

- bearing

2шт.

19

A31236

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

BEARING - sprocket

2шт.

20

L13903

SNAP RING,3.562", Int, #354

Ring, Snap, 3.562", Int, #354

2шт.

21

113117A1

SPROCKET ASSY.

SPROCKET - idler

1шт.
