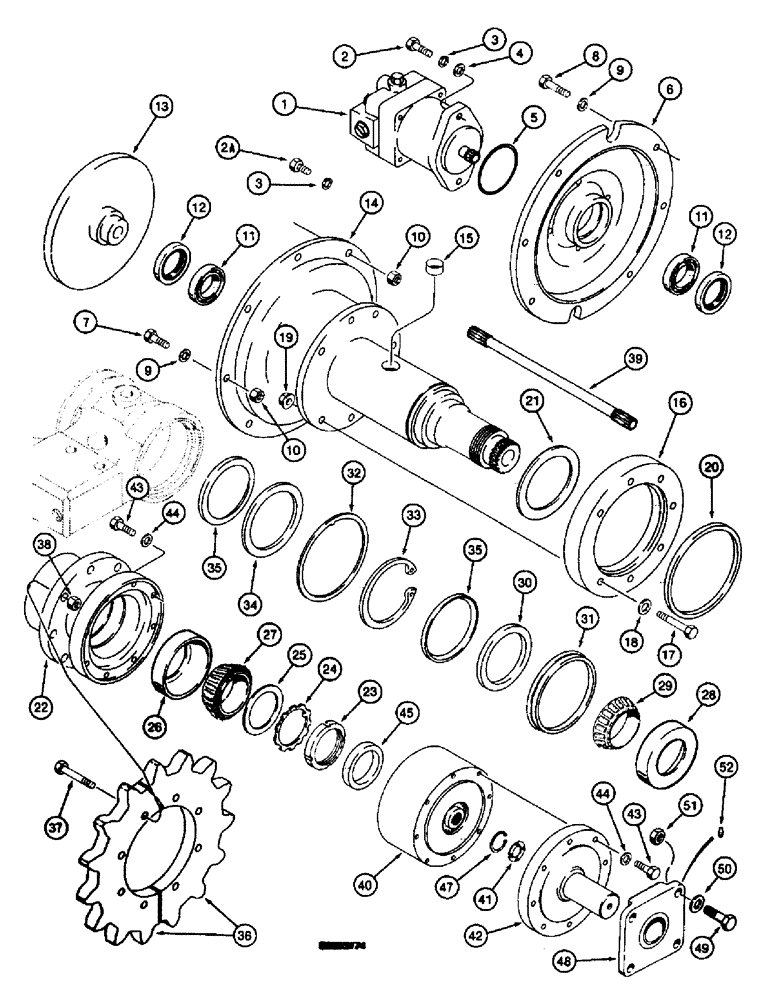

Запчасти Case 660 (9-049A) - INTEGRAL QUAD TRENCHER DRIVE LINE MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H673186

HYDRAULIC MOTOR

MOTOR ASSEMBLY - trencher drive, parts list Fig. 8-85A

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

2a

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

H274894

WASHER

- flat, special

2шт.

5

S5748

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

- motor to flywheel cover

1шт.

6

H434811

COVER

- flywheel and pump mounting

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

9

H274894

WASHER

- flat, special

8шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

11

G13075

BEARING, BALL

BEARING - ball, flywheel

2шт.

12

H438061

SEAL,53.98mm ID x 81.13mm OD x 11.1mm Thk

- flywheel bearing

2шт.

13

116343A1

FLYWHEEL

- trencher

1шт.

14

116471A1

PIVOT

MOUNT - boom pivot

1шт.

15

41-1620

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter

2шт.

16

H437580

SPACER

- pivot, Serial Range: mount-frame

1шт.

17

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

7шт.

18

H274894

WASHER

- flat, special

7шт.

19

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

20

H437506

SEAL,166.65mm ID x 187.58mm OD x 9.93mm Thk

- spacer to trencher frame

1шт.

21

H437581

WASHER

- special, at boom pivot mount

1шт.

22

116740A1

HUB

- digging chain sprocket

1шт.

23

54-2015

BEARING LOCK NUT,Tan-15, Bearing

NUT - bearing lock, TAN 15

1шт.

24

192-315

BEARING WASHER,Type W-15

WASHER - bearing lock, SAE No. W-15

1шт.

25

L112617

WASHER

- shim, hardened, bearing retaining

1шт.

26

A67327

BEARING CUP,120 mm OD x 25 mm

CUP - tapered roller bearing, small

1шт.

27

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

CONE - tapered roller bearing, small, planetary end

1шт.

28

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing, large

1шт.

29

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE - tapered roller bearing, large

1шт.

30

H428839

SEAL,107.95mm ID x 133.5mm OD x 12.7mm Thk

- planetary

1шт.

31

H433852

SEAL

- hub

1шт.

32

103885A1

WASHER,159.04mm ID x 177.8mm OD x 3.17mm Thk

- wear, special

1шт.

33

S64875

SNAP RING

RING - snap, wear washer

1шт.

34

H437582

WASHER,121.15mm ID x 150mm OD x 6.35mm Thk

WASHER - special, seal retainer

1шт.

35

H437505

SEAL,118.57mm ID x 136.75mm OD x 8.33mm Thk

- hub to boom mount

2шт.

36

104152A1

SPROCKET ASSY.

SPROCKET - split, includes both halves, 15 teeth, digging chain, used with 70,000 pound chainline

1шт.

37

428-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex, 9/16 NF x 2-3/4 inch, grade 8

8шт.

38

232-4619

LOCK NUT,9/16"-18, GC

NUT, LOCK, 9/16"-18, GC

8шт.

39

116461A1

DRIVE SHAFT

SHAFT - drive, trencher

1шт.

40

116470A1

GEAR-SET

PLANETARY ASSEMBLY - trencher drive, Includes: Carriers and Gears

1шт.

119864A1

CARRIER

- planetary, not shown

1шт.

119865A1

CARRIER

- planetary, not shown

1шт.

119866A1

RING

GEAR - ring, planetary, not shown

1шт.

119867A1

SUN GEAR

GEAR - sun, planetary, not shown

1шт.

41

N6363

WASHER

- thrust, sun gear, included with 116470A1 planetary

1шт.

42

116742A1

COVER

- planetary

1шт.

43

428-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8

16шт.

44

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

16шт.

45

117233A1

SPACER

- planetary

1шт.

46

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT

2шт.

47

100-2175

SNAP RING,0.75", Int, #75

Ring, Snap, , Planetary 0.75", Int, #75

1шт.

48

H758292

BEARING

- planetary, outer support

1шт.

49

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

50

H426809

SPACER

WASHER - flat, special

4шт.

51

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

52

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.
