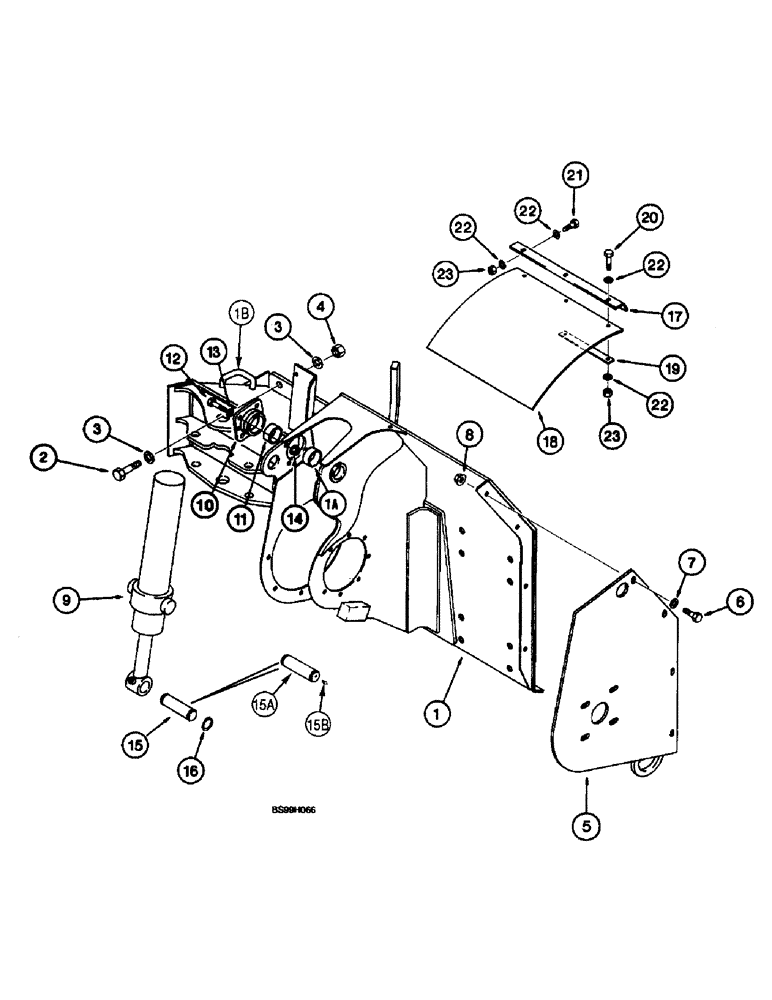

Запчасти Case 660 (9-045A) - INTEGRAL QUAD FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

115770A1

CHASSIS

FRAME - quad, Includes: Ref. 1A and 1B

1шт.

1a

H436164

BUSHING

- cylinder pivot

1шт.

1b

348957A1

BRACKET

- tiedown, frame

1шт.

2

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

6шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

12шт.

4

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

6шт.

5

117217A1

COVER ASSY

COVER - end, trencher frame

1шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

7

H274894

WASHER

- flat, special

4шт.

8

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 165 mm (6-1/2 inch) stroke, trencher boom lift, see Figs. 8-83C and 8-83E for correct cylinder

1шт.

H673643

BLOCK

PIVOT ASSEMBLY - cylinder, Includes: Ref. 10 and 11

1шт.

10

H436516

BLOCK

PIVOT - cylinder

1шт.

11

H436164

BUSHING

- cylinder pivot

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

13

H274894

WASHER

- flat, special

4шт.

14

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

15

106707A1

PIN

- mounting, boom lift cylinder, used with H672821 cylinder

1шт.

15a

221253A1

PIN

- mounting, boom lift cylinder, used with 221700A1 cylinder

1шт.

15b

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, used with pin, 15A

1шт.

16

D25279

SNAP RING,M35, Int

RING - snap

2шт.

17

117207A1

BRACKET

- angle, dirt deflector

1шт.

18

117206A1

DEFLECTOR

- dirt

1шт.

19

117205A1

LARGE PLATE

PLATE - support, dirt deflector

1шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

22

H426775

WASHER

- flat, special, hardened

6шт.

23

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.
