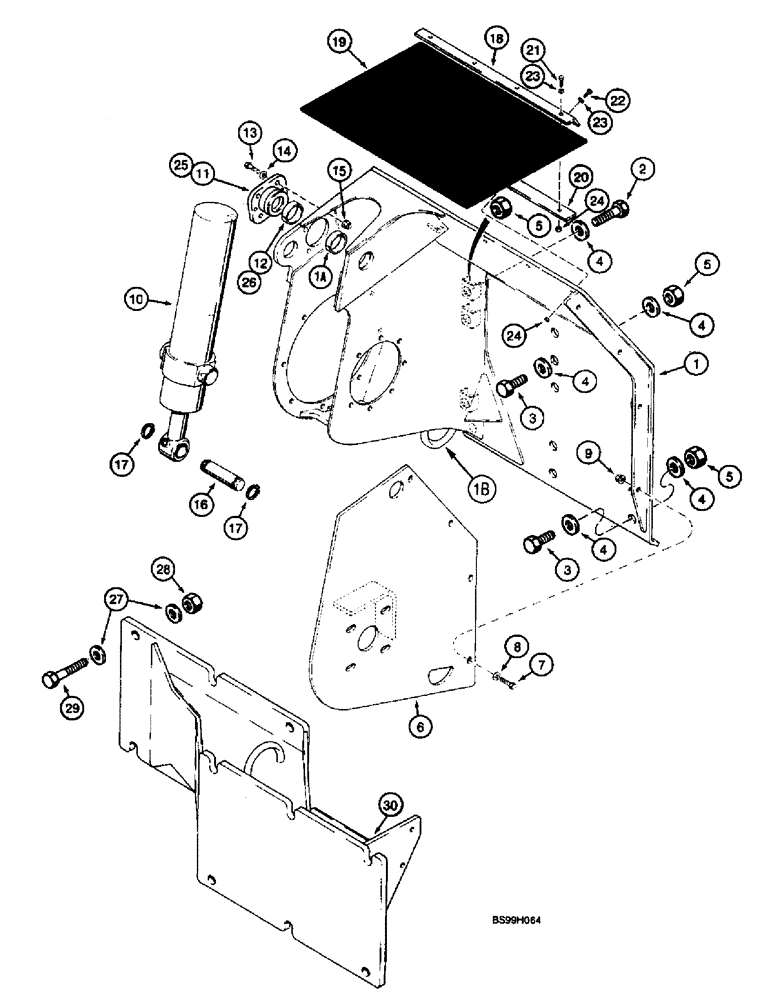

Запчасти Case 660 (9-042) - TRENCHER FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H675079

SUPPORT

FRAME - trencher, Includes: Ref. 1A and 1B

1шт.

1a

H436164

BUSHING

- cylinder pivot

1шт.

1b

348957A1

BRACKET

- tiedown, frame

1шт.

2

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

3

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

5шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

12шт.

5

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

7шт.

6

H674660

PLATE

COVER - trencher frame

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

H274894

WASHER

- flat, special

8шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - 102 (4) ID x 419 mm (16-1/2 inch) stroke, trencher boom lift, see Figs. 8-82 and 8-83A for correct cylinder

1шт.

H673643

BLOCK

PIVOT ASSEMBLY - cylinder, no longer available, order Ref. 25 below, Includes: Ref. 11 and 12

1шт.

11

H436516

BLOCK

PIVOT - cylinder

1шт.

12

H436164

BUSHING

- cylinder pivot

1шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

14

H274894

WASHER

- flat, special

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

D44881

PIN,38.1mm OD x 136.4mm L

- lift cylinder retaining, used with H672822 cylinder

1шт.

16a

221253A1

PIN

- mounting, lift cylinder retaining, used with 221702A1 cylinder

1шт.

16b

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, used with 221253A1 pin

1шт.

17

D25279

SNAP RING,M35, Int

RING - snap

2шт.

18

H439324

BRACKET

- angle, dirt deflector

1шт.

19

H439325

DEFLECTOR

- dirt

1шт.

20

H439331

STRIP

PLATE - support, dirt deflector

1шт.

21

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

23

H426775

WASHER

- flat, special, hardened

8шт.

24

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

123494A1

PISTON ASSY

PIVOT ASSEMBLY - cylinder, Includes: Ref. 25 and 26

1шт.

25

123495A1

PIVOT

- block

1шт.

26

H436164

BUSHING

- cylinder pivot

1шт.

27

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch, offset trencher parts

12шт.

28

231-41116

NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC, offset trencher parts

6шт.

29

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

Offset trencher parts Hex, 1"-8 x 3", G5

6шт.

30

H674014

SUPPORT

BRACKET - mounting, offset trencher parts

6шт.
