(9-036) - BACKHOE BUCKETS

Запчасти Case 660 (9-036) - BACKHOE BUCKETS (09) - CHASSIS/ATTACHMENTS

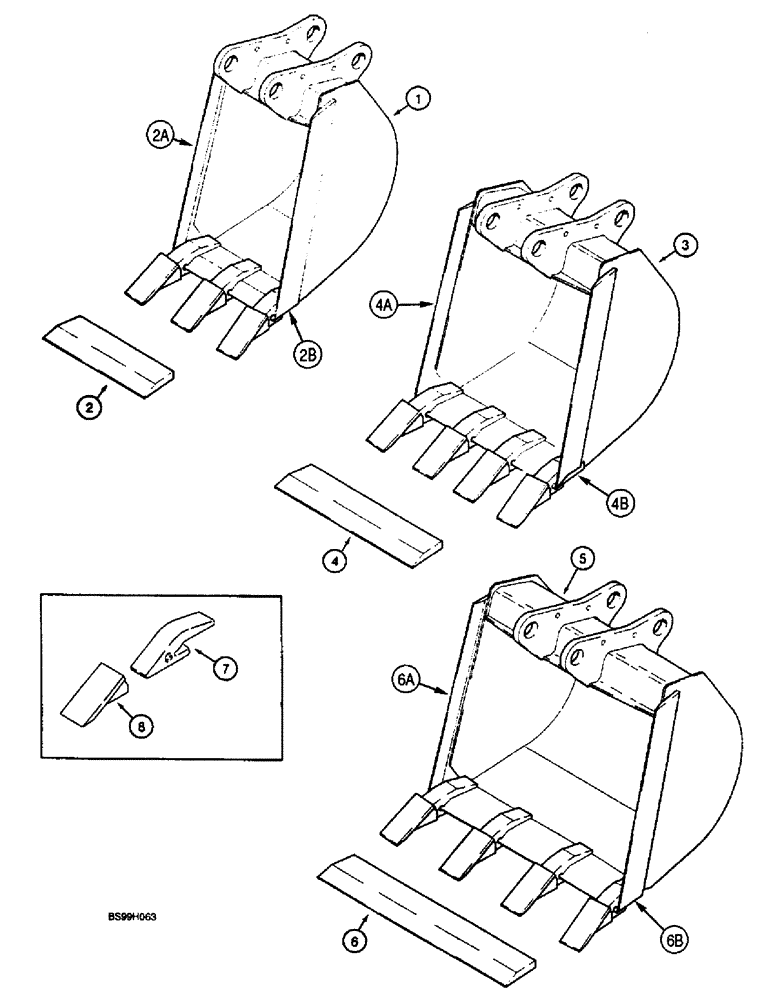

Схема запчастей Case 660 - (9-036) - BACKHOE BUCKETS (09) - CHASSIS/ATTACHMENTS
7
8
2
4b
6b
1
2a
3
6a
5
4a
2b
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674115

BUCKET

ASSEMBLY - backhoe, order from Machinery Price List, 344 mm (13-1/2 inch) wide, Includes: Ref. 1 - 2B

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - 344 mm (13-1/2 inch) wide

1шт.

2

H438604

EDGE

- cutting, 344 mm (13-1/2 inch)) bucket

1шт.

2a

H437364

EDGE

- side cutting, LH

1шт.

2b

H437365

EDGE

- side cutting, RH

1шт.

H674116

BUCKET

ASSEMBLY - backhoe, order from Machinery Price List, 458 mm (18 inch) wide, Includes: Ref. 3 - 4B

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET - 458 mm (18 inch) wide

1шт.

4

H438593

EDGE

- cutting, bucket, 458 mm (18 inch) wide

1шт.

4a

H437364

EDGE

- side cutting, LH

1шт.

4b

H437365

EDGE

- side cutting, RH

1шт.

H674117

BUCKET

ASSEMBLY - backhoe, order from Machinery Price List, 610 mm (24 inch) wide, Includes: Ref. 5 - 6B

1шт.

5

NSS

NOT SOLD SEPARAT

BUCKET - 610 mm (24 inch) wide

1шт.

6

H438543

EDGE

- cutting, bucket, 610 mm (24 inch) wide

1шт.

6a

H437364

EDGE

- side cutting, LH

1шт.

6b

H437365

EDGE

- side cutting, RH

1шт.

H672429

TOOTH

ASSEMBLY - backhoe bucket, Includes: Ref. 7 and 8

3-4шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

8

D27748

TOOTH

POINT - bucket tooth, standard

1шт.
