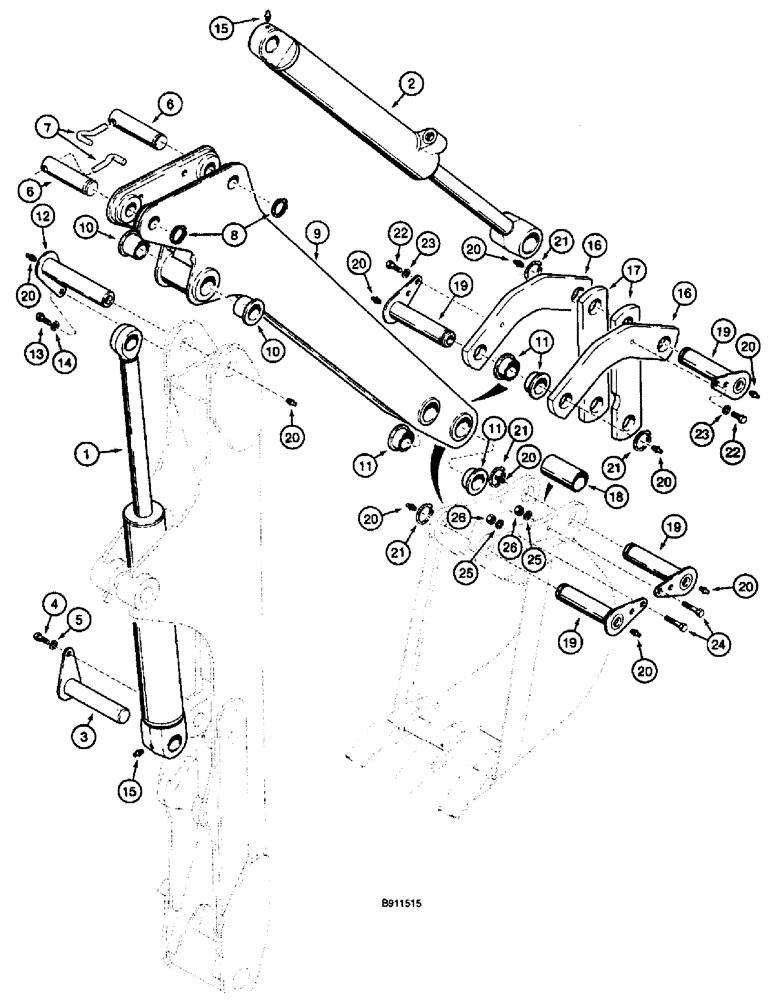

Запчасти Case 660 (9-034) - BACKHOE DIPPER (09) - CHASSIS/ATTACHMENTS

1

1346411C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID x 498 mm (19-5/8 inch) stroke, dipper, parts list Fig. 8-68

1шт.

2

1346397C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 559 mm (22 inch) stroke, bucket, parts list Fig. 8-70

1шт.

3

H674119

PIN

- closed end of dipper, Serial Range: cylinder-boom

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

H437349

PIN,31.8mm OD x 136mm L

- mounting, dipper and bucket, Serial Range: cylinders-dipper

2шт.

7

H433937

LARGE PIN,12.7mm OD

LOCK - pin

2шт.

8

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

H674676

DIPPER

ASSEMBLY - backhoe, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

DIPPER - backhoe

1шт.

10

H437301

BUSHING,38.35mm ID x 62mm OD x 40mm L

- dipper pivot at boom

2шт.

11

H433624

BUSHING,38.23mm ID x 64mm OD x 25.5mm L

- bucket link and bucket

4шт.

12

H674113

PIN,38.15mm OD x 187mm L

-, Serial Range: dipper-boom

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

16

H437315

LARGE PLATE

LINK - curved, Serial Range: dipper-bucket

2шт.

17

H437313

LARGE PLATE

LINK - straight, Serial Range: dipper-bucket

2шт.

18

H437316

SPACER

- bucket links

1шт.

19

H674109

PIN

- links and bucket

4шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

10шт.

21

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

4шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.
