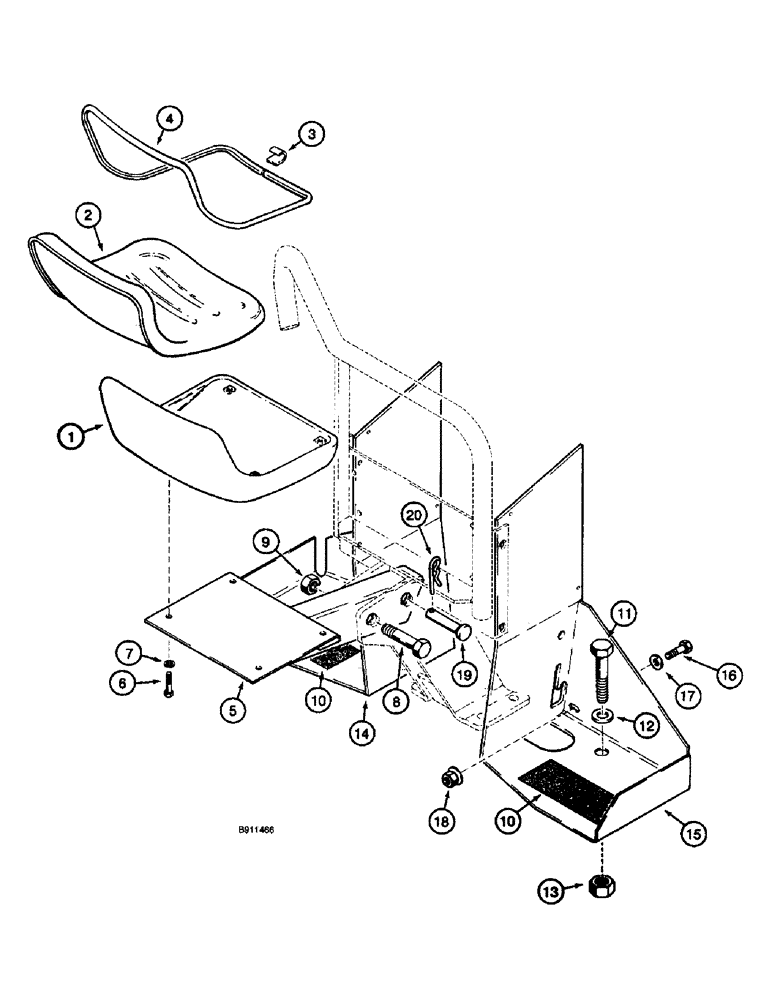

Запчасти Case 660 (9-030) - BACKHOE SEAT, SEAT MOUNTING, AND FOOT REST (09) - CHASSIS/ATTACHMENTS

179332A1

SEAT

ASSEMBLY - operator's, gray, no seat kit available for service, order 179332A1 seat

1шт.

H436146

SEAT

ASSEMBLY - operator's, brown, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - seat

1шт.

N13696

SET

KIT - seat, no longer available, order H436146 seat assembly, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

3

NSS

NOT SOLD SEPARAT

CLIP - seat trim

1шт.

4

NSS

NOT SOLD SEPARAT

TRIM - seat

1шт.

5

H673473

LARGE PLATE

BRACKET - seat mounting

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch

1шт.

9

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

1шт.

10

H386334

FLOOR MAT

STRIP - anti-skid, backhoe access steps

2шт.

11

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

2шт.

13

230-42116

LOCK NUT,1"-8, GA

NUT - hex, self-locking, 1 inch NC

2шт.

14

H674622

LARGE PLATE

GUARD - foot, LH

1шт.

15

H674623

LARGE PLATE

GUARD - foot, RH

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

17

H426775

WASHER

- flat, special, hardened

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

19

S10839

CLEVIS PIN,19.05mm OD x 95.25mm L

PIN, CLEVIS, 3/4 x 3-1/2 inch, Special

1шт.

20

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - cotter, hair, 5/16 x 2-25/32 inch

1шт.
