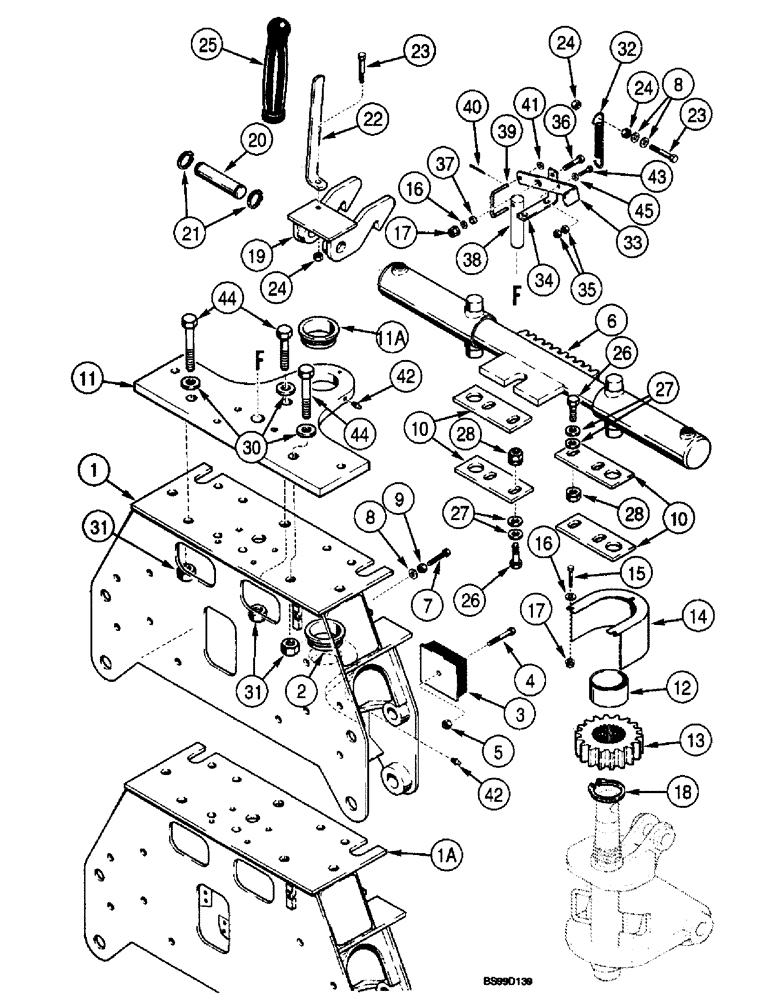

Запчасти Case 660 (9-024) - BACKHOE FRAME, BOOM LOCK, AND SWING CYLINDER MOUNTING, D125 BACKHOE (09) - CHASSIS/ATTACHMENTS

H674120

FRAME

ASSEMBLY - backhoe attachment, prior to backhoe serial no. JAF0218189

1шт.

330140A1

FRAME

ASSEMBLY - backhoe attachment, backhoe serial no. JAF0218189 and after

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - backhoe attachment, used with H674120 frame assembly

1шт.

1a

NSS

NOT SOLD SEPARAT

FRAME - backhoe attachment, used with 330140A1 frame assembly

1шт.

2

H434397

BUSHING,70.04mm ID x 89mm OD x 32mm L

- backhoe frame

1шт.

3

D90990

GUARD

BUMPER - rubber, boom stop

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

H673149

CYLINDER ASSY.

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 254 mm (10 inch) stroke, swing, parts list Fig. 8-64

1шт.

7

113-2481

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

3шт.

9

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

10

H437390

LARGE PLATE

PLATE - swing cylinder mounting

4шт.

11

H674124

PLATE

ASSEMBLY - bushing mounting

1шт.

11a

H434397

BUSHING,70.04mm ID x 89mm OD x 32mm L

- plate

1шт.

12

H437362

SPACER

- swing tower

1шт.

13

H437361

PINION

GEAR - driven

1шт.

14

H674128

COVER

- swing gear

1шт.

15

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

3шт.

16

H426775

WASHER

- flat, special, hardened

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

18

100-11306

SNAP RING,#306, Ext

Ring, Snap, #306, Ext

1шт.

19

H674110

LATCH

- boom lock

1шт.

20

H437323

PIN,31.8mm OD x 148mm L

- boom latch

1шт.

21

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

22

H436021

GRIP

HANDLE - control

1шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

24

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

3шт.

25

H33332

GRIP

- handle

1шт.

26

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

8шт.

27

H426817

WASHER

- flat, special, hardened

16шт.

28

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

8шт.

29

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

1шт.

30

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

3шт.

31

230-42116

LOCK NUT,1"-8, GA

NUT - hex, self-locking, 1 inch NC

3шт.

32

D124939

SPRING

- lock, control lever

1шт.

33

H438352

HANDLE

LEVER - control

1шт.

34

H438354

ANGLE

- lever mounting

1шт.

35

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

36

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

37

H93971

SPACER,1/4" Pipe x 7/16"

BUSHING - control lever

1шт.

38

H438350

PIN

- control lever

1шт.

39

H438351

LINK

- control lever

1шт.

40

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

41

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

43

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

44

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

45

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.
