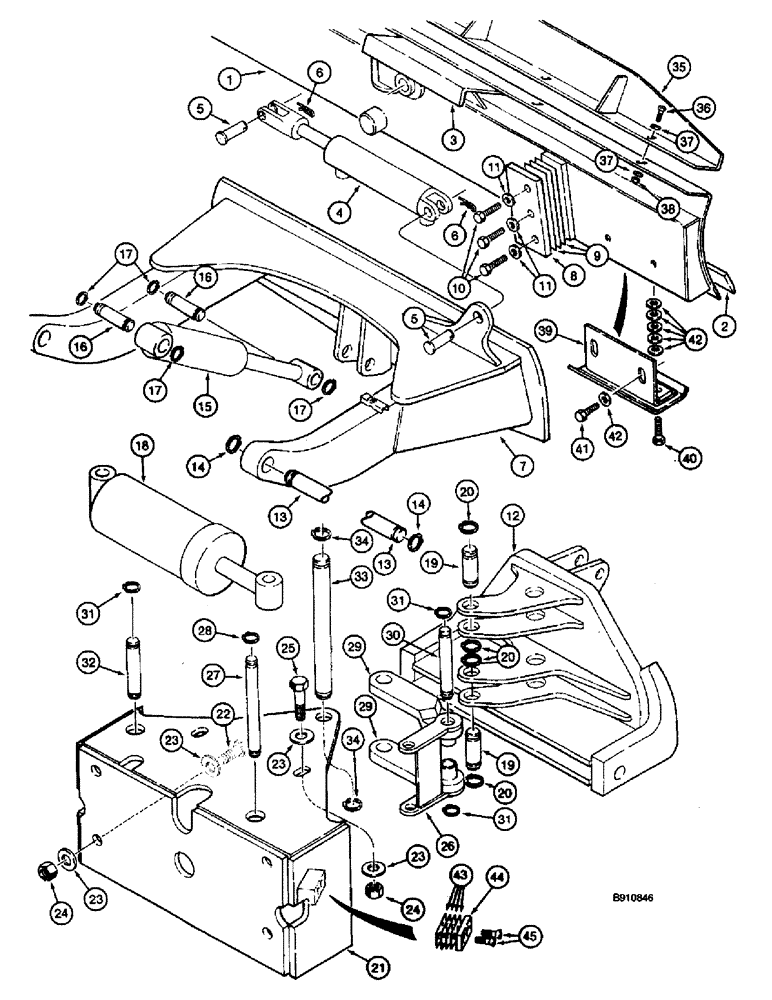

Запчасти Case 660 (9-020) - BACKFILL BLADE, FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H673758

BLADE

ASSEMBLY - backfill, Includes: Ref. 2 and 3

1шт.

2

H436731

BAR

EDGE - cutting, backfill blade

1шт.

3

H436738

GUARD

- tilt cylinder

1шт.

4

H673747

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 89 mm (3-1/2 inch) stroke, backfill blade tilt, parts list Fig. 8-38

1шт.

5

439-11644

HEADED PIN,1" x 2 3/4"

PIN - headed, 1 x 2-3/4 inch, grade 2

2шт.

6

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN - cotter, hair, 1/2 x 3-1/4 inch

2шт.

7

H673757

CHASSIS

ARM - backfill blade mounting

1шт.

8

H438273

RETAINER

PLATE - retainer, Serial Range: blade-arm

2шт.

9

H438278

SHIM,1.5mm Thk

Retainer plate 1.5mm Thk

1шт.

10

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

6шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special, hardened

6шт.

12

H673756

PIVOT

BRACKET - backfill arm pivot

1шт.

13

H436749

PIN

- backfill arm pivot

1шт.

14

D25279

SNAP RING,M35, Int

RING - snap, pivot pin

2шт.

15

H674312

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 235 mm (9-1/4 inch) stroke, backfill blade lift, parts list Fig. 8-34

1шт.

16

H437684

PIN

- mounting, lift cylinder to arm and pivot bracket

2шт.

17

100-1698

SNAP RING,#98, Ext

Ring, Snap, , Lift cylinder pin #98, Ext

4шт.

18

H673704

CYLINDER,101.6 mm ID x 327 mm L

ASSEMBLY - 102 (4) ID x 152 mm (6 inch) stroke, backfill blade angle, parts list Fig. 8-36

1шт.

19

H436748

PIN

- mounting, angle cylinder levers to pivot bracket

2шт.

20

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Lever mounting pin #125, Ext

4шт.

21

H673755

FRAME ASSY

FRAME - backfill blade mounting

1шт.

22

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

23

H426817

WASHER

- flat, special, hardened

10шт.

24

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

6шт.

25

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

26

H673760

LINK

- angle cylinder levers to mounting frame

1шт.

27

H436745

PIN

- link to mounting frame

1шт.

28

100-1698

SNAP RING,#98, Ext

Ring, Snap, , Link mounting pin #98, Ext

1шт.

29

H438524

BODY

LEVER - angle cylinder rod, Serial Range: end-link

2шт.

30

H436747

PIN

- mounting, angle cylinder rod end and, Serial Range: levers-link

1шт.

31

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Angle cylinder mounting pins #125, Ext

4шт.

32

H436746

PIN

- mounting, angle cylinder base, Serial Range: end-frame

1шт.

33

H436750

PIN

- mounting, frame to arm pivot bracket

1шт.

34

D25279

SNAP RING,M35, Int

RING - snap, pivot bracket mounting pin

2шт.

35

H674620

EXTENSION

- backfill blade

1шт.

36

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

37

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

38

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

39

H674649

SHOE (ASSY)

SHOE - skid, backfill blade

2шт.

40

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

41

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

42

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

24шт.

43

H439261

BAR

SPACER - bar

8шт.

44

H439260

BAR

- boom stop

2шт.

45

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT - hex socket, 5/16 NC x 1 inch

4шт.
