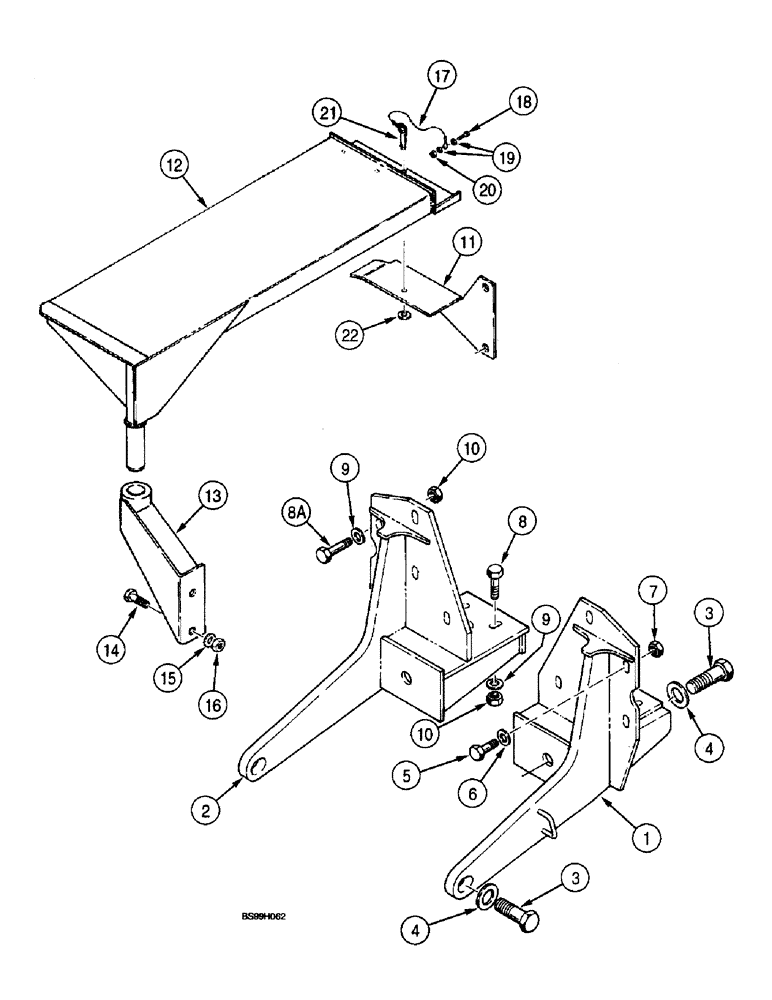

Запчасти Case 660 (9-017A) - BACKHOE TO CHASSIS MOUNTING BRACKETS AND WALKWAY (09) - CHASSIS/ATTACHMENTS

1

H674129

BRACKET

- backhoe to chassis mounting, right-hand

1шт.

2

H674130

BRACKET

- backhoe to chassis mounting, left-hand

1шт.

3

413-2056

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

- hex, 1-1/4 NC x 3-1/2 inch

4шт.

4

D43536

WASHER

- flat, special, 1-1/4 inch

4шт.

5

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

8шт.

6

H426817

WASHER

- flat, special, hardened

10шт.

7

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

10шт.

8

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

8a

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

9

H426817

WASHER

- flat, special, hardened

6шт.

10

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

6шт.

11

102346A1

ANGLE

- walkway support

1шт.

12

102368A1

WALKWAY

- backhoe access

1шт.

13

102362A1

PIVOT

- walkway mounting

1шт.

14

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

15

H426817

WASHER

- flat, special, hardened

2шт.

16

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

17

L78786

CABLE RETAINER

CABLE - retainer

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

20

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

21

D94535

PIN,9.52mm OD

- locking

1шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.
