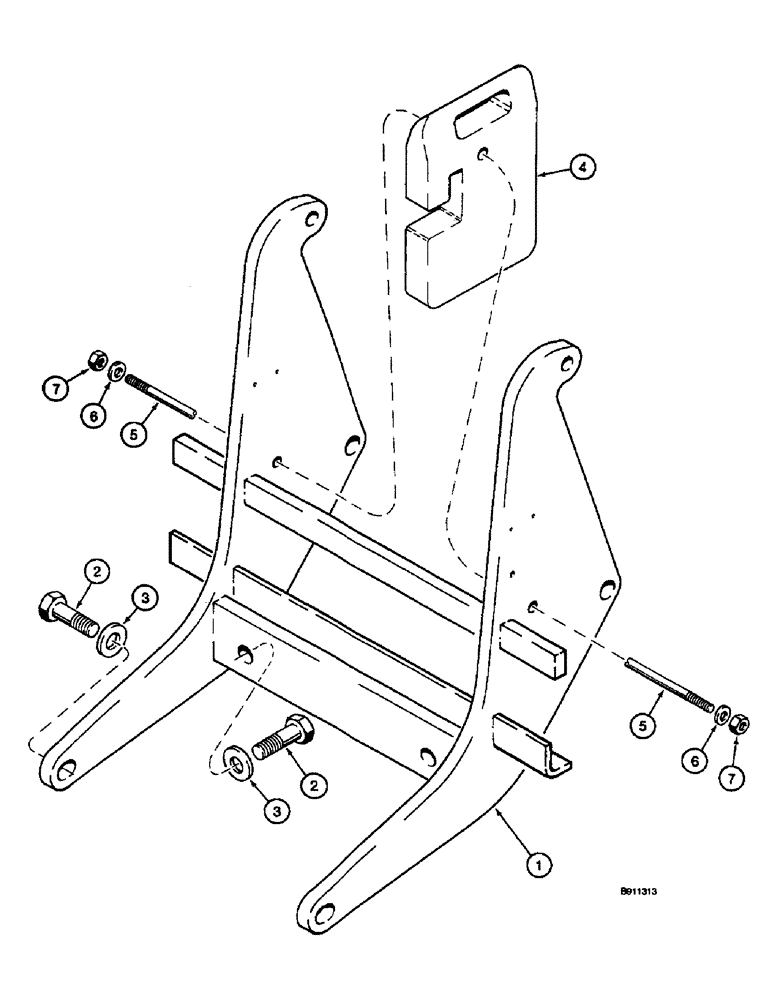

Запчасти Case 660 (9-014) - FRONT COUNTERWEIGHTS (09) - CHASSIS/ATTACHMENTS

1

H673991

CHASSIS

FRAME - counterweight

1шт.

H673991 frame is also used to mount reel carrier attachment on models so equipped. See Fig. 9-116 for reel carrier arm and mounting.

1шт.

2

413-2056

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

- hex, 1-1/4 NC x 3-1/2 inch

4шт.

3

D43536

WASHER

- flat, special, 1-1/4 inch

4шт.

4

H182386

BALANCER

COUNTERWEIGHT - 65 lbs (29.5 kg), front

7шт.

5

102057A1

ROD

- counterweight retaining

1шт.

6

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

7

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

2шт.
