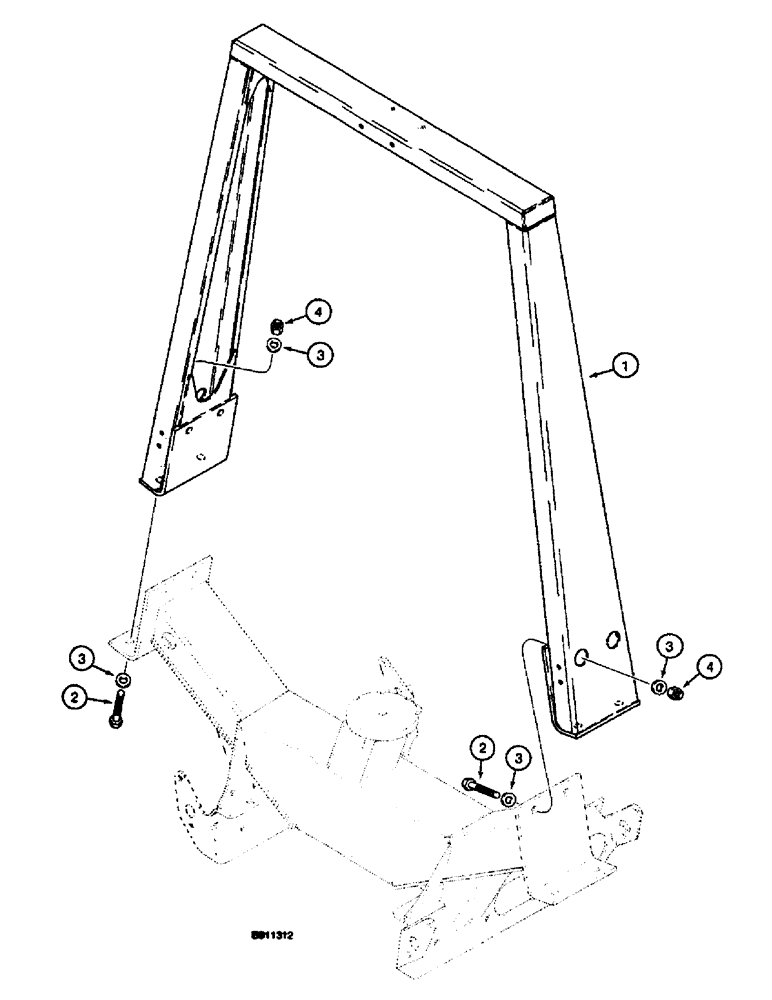

Запчасти Case 660 (9-012) - ROLL OVER PROTECTIVE STRUCTURE (09) - CHASSIS/ATTACHMENTS

1

H672806

ROPS - two post

1шт.

Components of 140621A1 (brown) and 189615A1 (gray) ROPS field kits. Also, includes seat belt and mounting hardware (Ref. 16, 18 and 19 on Fig. 9-8) and form no. 7-49230 installation instructions. Order from Machinery Price List.

1шт.

2

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch, grade 8

8шт.

Components of 140621A1 (brown) and 189615A1 (gray) ROPS field kits. Also, includes seat belt and mounting hardware (Ref. 16, 18 and 19 on Fig. 9-8) and form no. 7-49230 installation instructions. Order from Machinery Price List.

1шт.

3

H426809

SPACER

WASHER - flat, special, hardened

16шт.

Components of 140621A1 (brown) and 189615A1 (gray) ROPS field kits. Also, includes seat belt and mounting hardware (Ref. 16, 18 and 19 on Fig. 9-8) and form no. 7-49230 installation instructions. Order from Machinery Price List.

1шт.

4

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

8шт.

Components of 140621A1 (brown) and 189615A1 (gray) ROPS field kits. Also, includes seat belt and mounting hardware (Ref. 16, 18 and 19 on Fig. 9-8) and form no. 7-49230 installation instructions. Order from Machinery Price List.

1шт.
