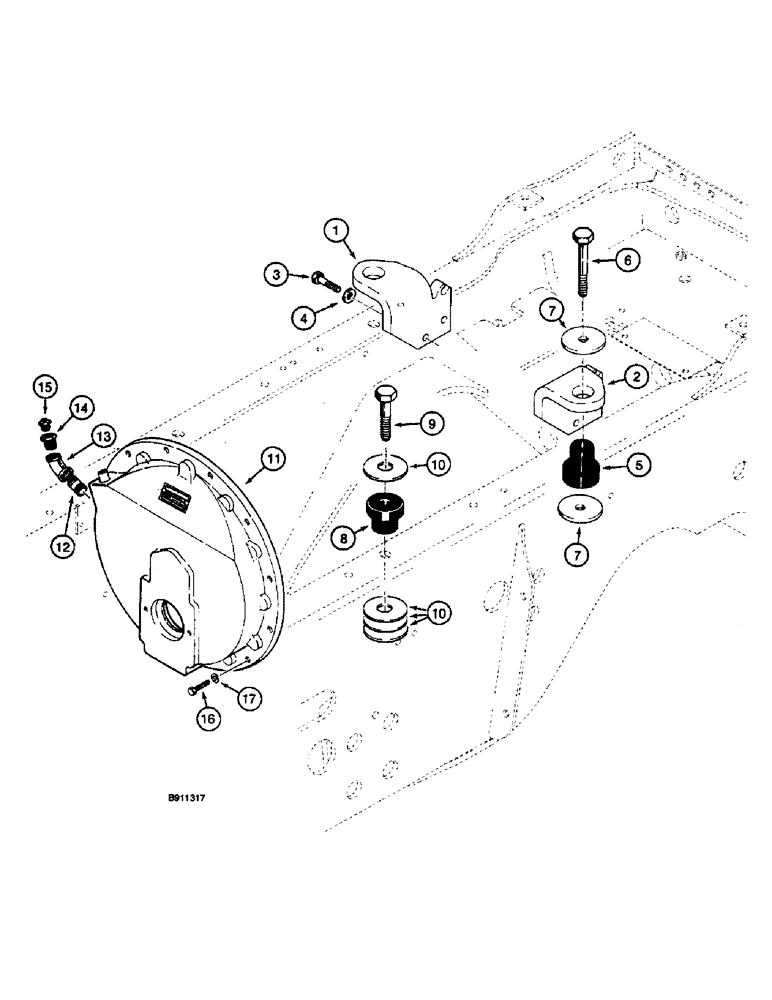

Запчасти Case 660 (2-10) - ENGINE MOUNTING (02) - ENGINE

1

H437044

ANGLE

MOUNT - engine, front, left-hand

1шт.

2

H437043

ANGLE

MOUNT - engine, front, right-hand

1шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

6шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

6шт.

5

A141451

SHOCK ABSORBER

MOUNT - rubber, engine, front

2шт.

6

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

7

A141470

WASHER

- flat, special

4шт.

8

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - engine mount, rubber

2шт.

9

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

10

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

8шт.

11

REF

INSTRUCTION

DRIVE ASSEMBLY - pump, parts list Fig. 6-22

1шт.

12

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - straight, 1/2 PT x 2 inch

1шт.

13

221-1368

ELBOW,45 Degree, 1/2" NPT

- pipe, 45 degree, 1/2 inch

1шт.

14

221-87

REDUCER,1/2" NPT x 1/8" NPT

- pipe, 1/2 male x 1/8 inch female

1шт.

15

A50096

VALVE

- relief

1шт.

16

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

12шт.

17

892-11010

LOCK WASHER,M10

12шт.
