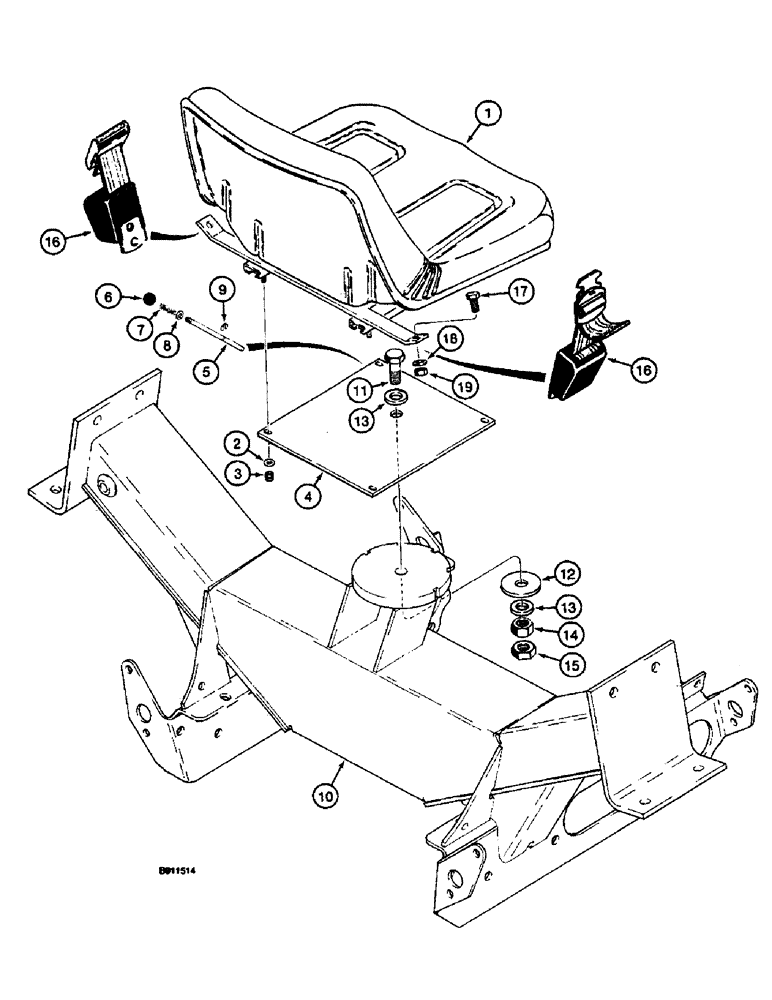

Запчасти Case 660 (9-008) - OPERATORS SEAT AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operators, see Fig. 9-10 for correct seat

1шт.

2

H426775

WASHER

- flat, special, hardened

4шт.

3

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

4

H673963

PLATE

- seat mounting

1шт.

5

H438386

PIN

- lock, seat adjustment

1шт.

6

A61683

BUTTON

KNOB - lock pin

1шт.

7

H438387

SPRING

- lock pin

1шт.

8

H426775

WASHER

- flat, special, hardened

1шт.

9

D95092

RING

- retainer, Serial Range: spring-pin

1шт.

10

H674710

PLATFORM

- operators compartment and fuel tank, see Fig. 9-4 for mounting, Serial Range: hardware-chassis

1шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

12

H438150

WASHER

- special, seat pivot

1шт.

13

H426817

WASHER

- flat, special, hardened

2шт.

14

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

1шт.

15

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

16

H651646

SAFETY BELT ,45.70 mm W

Retractable 45.70 mm W

1шт.

17

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Included with H672324 seat assembly, see Fig. 9-10 for complete seat assembly Hex, 7/16"-14 x 1", G5, Full Thd

2шт.

18

H426783

WASHER

- flat, special

2шт.

19

232-4117

LOCK NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

2шт.
