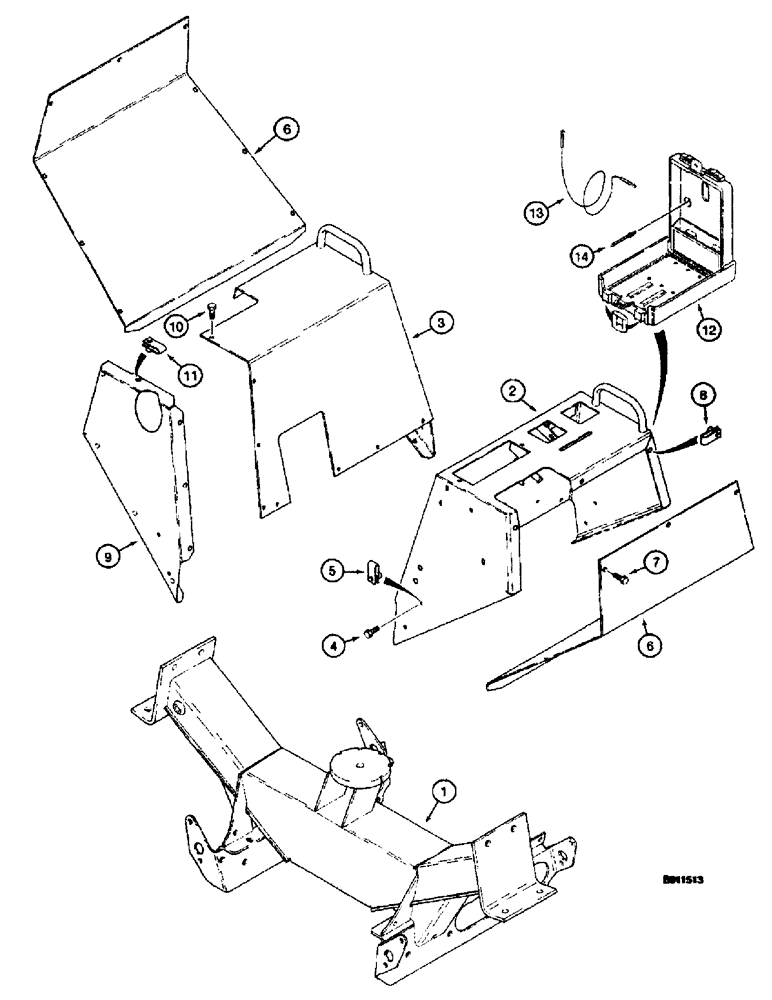

Запчасти Case 660 (9-006) - OPERATORS COMPARTMENT, CONSOLES AND COVERS (09) - CHASSIS/ATTACHMENTS

1

H674710

PLATFORM

- operators compartment and fuel tank, see Fig. 9-4 for mounting, Serial Range: hardware-chassis

1шт.

2

114365A1

CONSOLE

- operators compartment, right-hand

1шт.

3

H673962

CONSOLE

- operators compartment, left-hand

1шт.

4

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

5

H435223

NUT

- special, 5/16 inch NC

16шт.

6

H437042

COVER

- console, right-hand and left-hand

2шт.

7

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

18шт.

8

H346650

NUT

- U-type, 5/16 inch NC

18шт.

9

H437813

LARGE PLATE

COVER - end, left-hand console

1шт.

10

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

11

H346650

NUT

- U-type, 5/16 inch NC

4шт.

12

R46464

CASE

BOX - operators manual

1шт.

13

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

14

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 9/16 inch

3шт.
