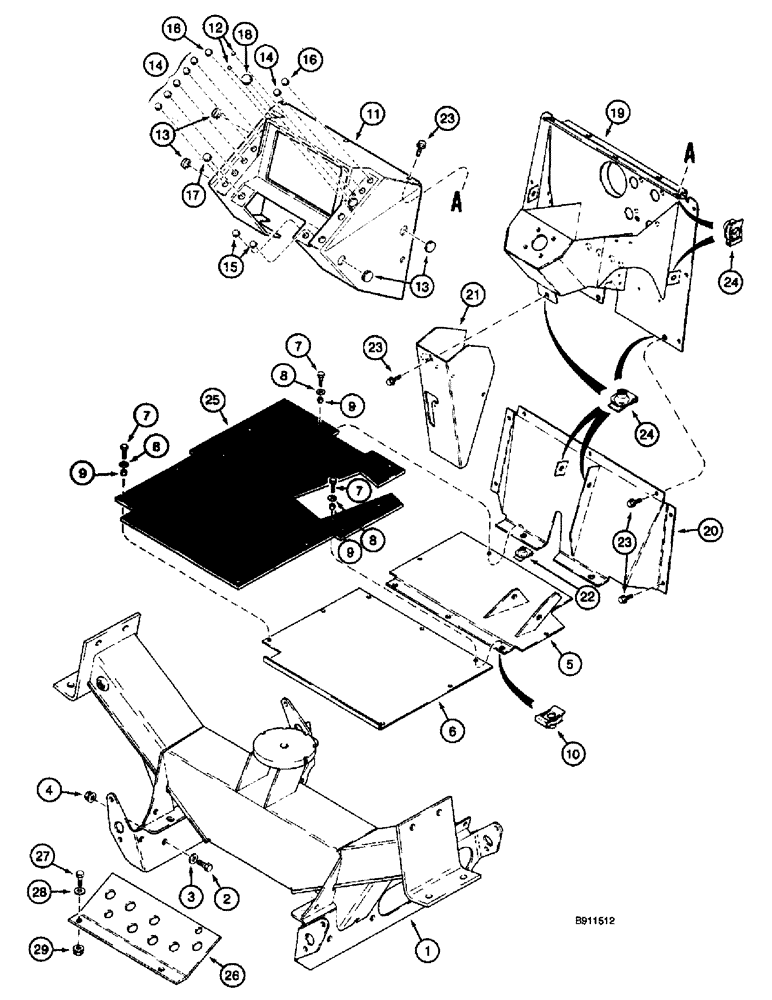

Запчасти Case 660 (9-004) - OPERATORS COMPARTMENT, PLATFORM, FLOORPLATES, STEERING TOWER AND PANELS (09) - CHASSIS/ATTACHMENTS

1

H674710

PLATFORM

- operators compartment and fuel tank

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

14шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

14шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

14шт.

5

H673970

PLATE

- floor, front

1шт.

6

H437045

LARGE PLATE

PLATE - floor, rear

1шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

11шт.

8

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

11шт.

9

D38524

SPACER

- floor plate

11шт.

10

H346650

NUT

- U-type, 5/16 inch NC

3шт.

11

D123199

PANEL

- instrument

1шт.

12

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

13

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch

4шт.

14

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

15

353-403

PLUG,Dome, .437" hole, Nylon

2шт.

16

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

17

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch

1шт.

18

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

19

141688A1

SUPPORT

TOWER - steering column, replaces H673973 tower

1шт.

20

H673987

COVER

- engine, rear

1шт.

21

H437067

CHANNEL

COVER - brake mounting

1шт.

22

D135342

ISOLATOR

MOUNT - isolation, brake cover

2шт.

23

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

21шт.

24

H346650

NUT

- U-type, 5/16 inch NC

21шт.

25

H438338

FLOOR MAT

FLOORMAT - operators compartment, brown, if used

1шт.

25

180603A1

FLOOR MAT

FLOORMAT - operators compartment, black, if used

1шт.

26

H437695

PANEL

PLATE - bulkhead, mounting, hydraulic fittings

1шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

28

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
