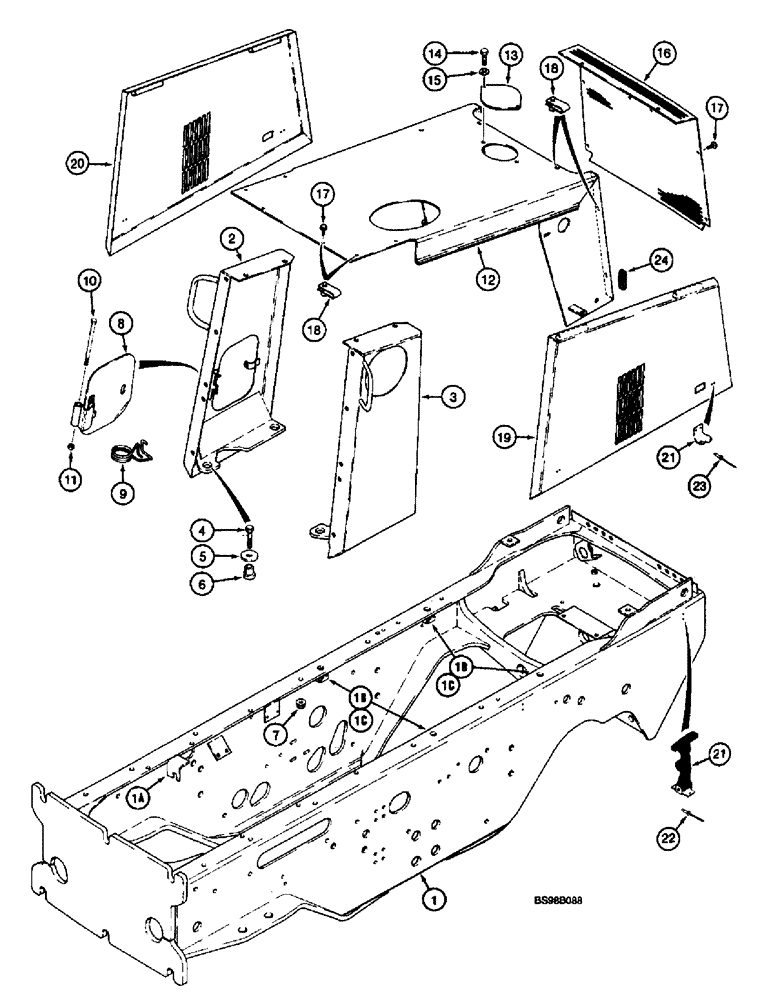

Запчасти Case 660 (9-002) - CHASSIS, HOOD, AND GRILLE, USED ON MODELS WITH 4-390 ENGINE (09) - CHASSIS/ATTACHMENTS

1

H673904

CHASSIS

- 660 Trencher, prior to P.I.N. JAF0140589, Includes: Ref. 1A - 1C

1шт.

1

175209A1

CHASSIS

- 660 Trencher, P.I.N. JAF0140589 and after, Includes: Ref. 1A - 1C

1шт.

1a

H438601

ANGLE

- cable mounting

1шт.

1b

D35240

CAGE

- nut

4шт.

1c

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

- heavy square, 5/8 inch NC

4шт.

2

H673974

STRUT

COWL - upright, left-hand

1шт.

3

H673975

STRUT

COWL - upright, right-hand

1шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

5

D64050

WASHER

- flat, special, 1/2 inch

4шт.

6

CASL13142

BUSHING

MOUNT - isolator, rubber

4шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

8

H673976

DOOR

- access, left-hand upright cowl

1шт.

9

D121677

SPRING

- access door

1шт.

10

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

11

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

1шт.

12

H673968

HOOD

- engine

1шт.

13

D143572

LID

COVER - access, brown

1шт.

13

189684A1

COVER

- radiator cap access, gray

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

15

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

16

H437026

GRILLE

- radiator guard

1шт.

17

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

12шт.

18

H346650

NUT

- U-type, 5/16 inch NC

12шт.

19

H673951

PANEL

- side, engine, right-hand

1шт.

20

H673950

PANEL

- side, engine, left-hand

1шт.

21

H672204

HOOD

LATCH - hood

4шт.

22

151-558

RIVET,Pop, 3/16" x .450"

- break mandrel, 3/16 x 1/2 inch

8шт.

23

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

Break mandrel Pop, 3/16" x .700"

8шт.

24

H438958

SEAL

-, Serial Range: grille-hood

2шт.
