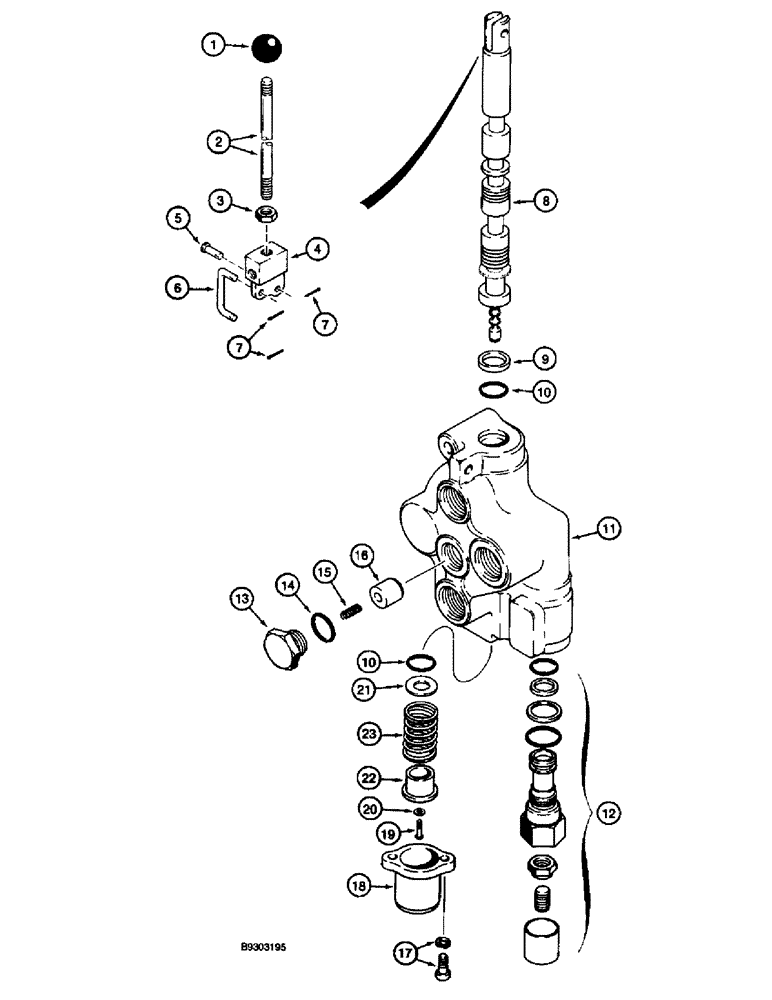

Запчасти Case 660 (8-115A) - REMOTE HYDRAULIC CONTROL VALVE - 107081A1 (08) - HYDRAULICS

107081A1

VALVE

ASSEMBLY - control, remote hydraulic, Hydra-Borer or hydraulic tool, Includes: Ref. 1 - 23

1шт.

1

A14051

GRIP

KNOB - control lever

1шт.

2

H438923

HANDLE

ROD - control lever

1шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

4

H438924

BLOCK

- pivot

1шт.

5

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

6

H438042

ARM

LINK - C-type

1шт.

7

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

3шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - control valve, order 107081A1 valve assembly

1шт.

9

H438926

WIPER SEAL

WIPER - spool

1шт.

10

H438030

O-RING

- spool

2шт.

11

NSS

NOT SOLD SEPARAT

BODY - control valve, order 107081A1 valve assembly

1шт.

12

H438925

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - load check, Includes: Ref. 14

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

16

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

H674816

KIT

- centering spring, Includes: Ref. 17 - 23

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - includes lock washer

2шт.

18

N9528

CAP

- bucket spool end

1шт.

19

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

BOLT - hex socket, No. 10 NF x 1/2 inch

1шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - spring seat, spool

1шт.

22

N9529

SEAT

- spring, spool

1шт.

23

N9539

TENSION SPRING

SPRING - centering, spool

1шт.
